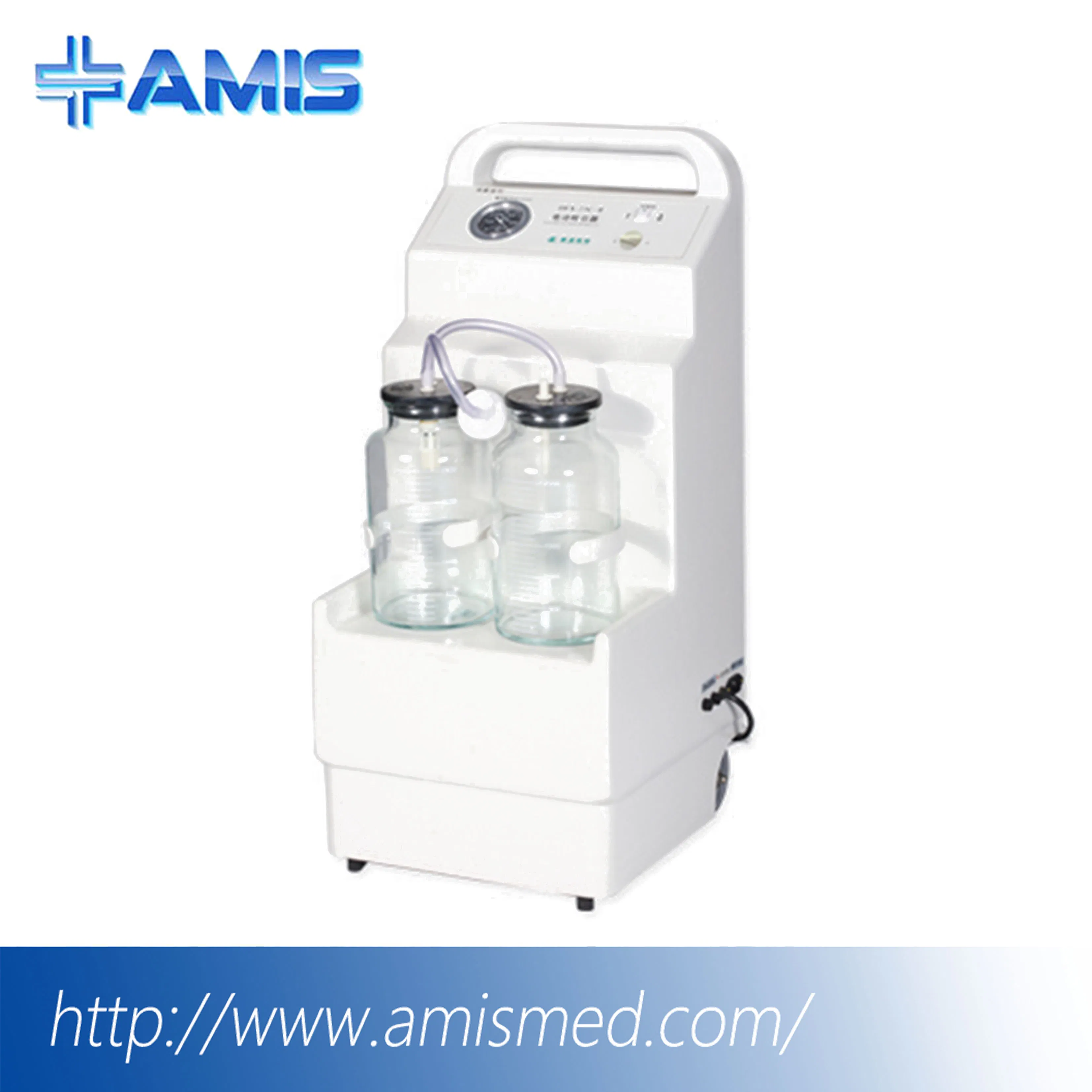

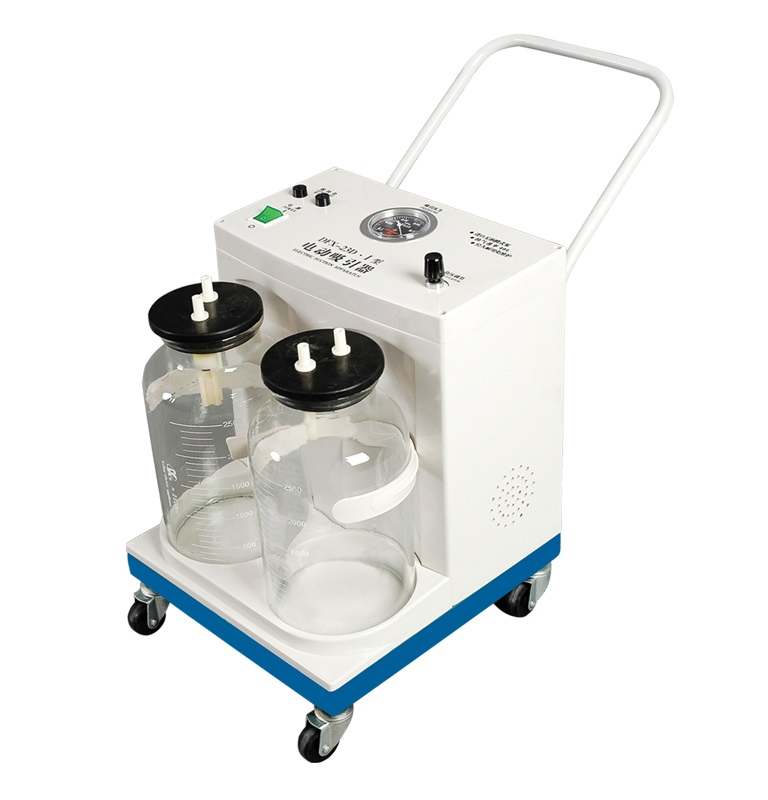

Electrical Suction Device (AM-23C. II)

Customization:	Available
Type:	Suction Machine
Kind:	Surgical

Send Inquiry

Product Description

📋

Basic Info.

Model NO.

AM-23C. II

Certification

CE, ISO13485

Group

Full

LCD Display

Without LCD Display

Bottle

Two

Transport Package

Carton

Origin

China

HS Code

90189090

🔍

Product Description

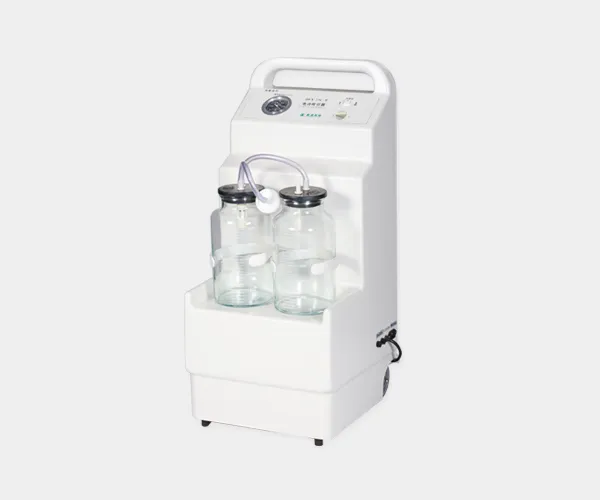

Electrical Suction Device (AM-23C. II) is a new style mobile suction device designed for medical operations, specifically in gynecology departments. It is highly efficient for extracting pus, blood, sputum, and other thick liquids from the human body.

✨

Key Features

Imported Membrane Pump: Equipped with a high-quality pump ensuring a long service life.

Low Noise Operation: Designed for quiet performance and is completely maintenance-free.

Overflow Protection: Integrated unit prevents liquid from entering the pump body for safety.

Dual Control System: Features both hand-operated and footstep-operated switches for convenience.

Oil-Mist Free: The diaphragm negative pressure pump eliminates oil mist pollution.

⚙️

Technical Specifications

Mains	AC 220V± 10% 50Hz
Pump Structure	Imported film type pump
Air Pumping Efficiency	≥ 25L/min (35L pump suitable)
Negative Pressure	≥ 0.09MPa
Adjustment Range	0.013~0.09MPa
Input Power	400VA
Liquid Vessel	2500ml × 2
Noise Level	≤ 55dB
Work Mode	Intermittent loading, continuous operation

🖼️

Product Details & Variations

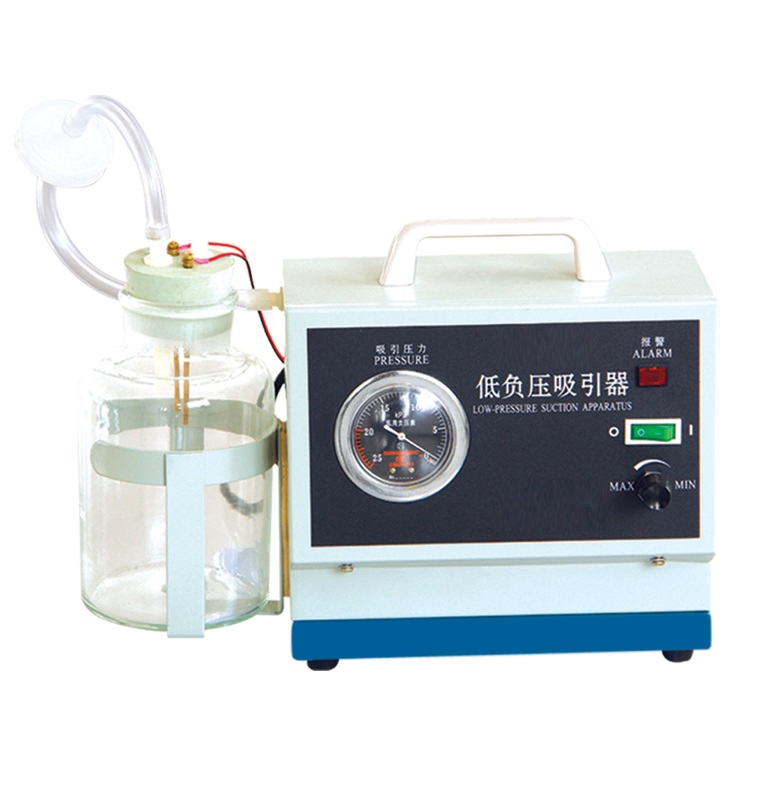

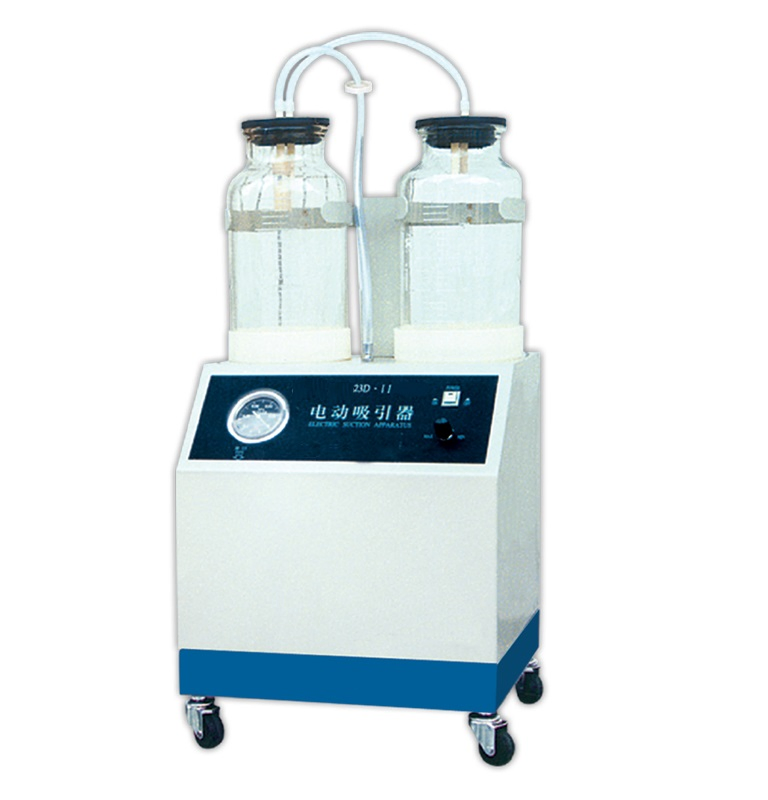

Product Range Overview:

❓

Frequently Asked Questions

What are the primary applications for the AM-23C. II?

It is mainly used in hospital surgical and gynecology departments for suctioning blood, pus, sputum, and other thick secretions. It is also suitable for induced abortion procedures.

Is this device portable?

Yes, the AM-23C. II is designed as a mobile suction unit, allowing for easy transport between different operating rooms or clinical areas.

Does the pump require frequent maintenance?

No, the device uses an imported diaphragm membrane pump which is maintenance-free and eliminates oil-mist pollution.

How is the liquid overflow prevented?

The unit is equipped with a specialized overflow protection device that automatically stops liquid from entering the pump body, protecting the internal mechanism.

Can the suction pressure be adjusted?

Yes, the negative pressure can be adjusted within a range of 0.013 to 0.09MPa to suit different clinical requirements.

What is the total storage capacity for extracted liquids?

The device comes with two large liquid vessels, each with a capacity of 2500ml, providing a total storage of 5000ml.

Product Detail

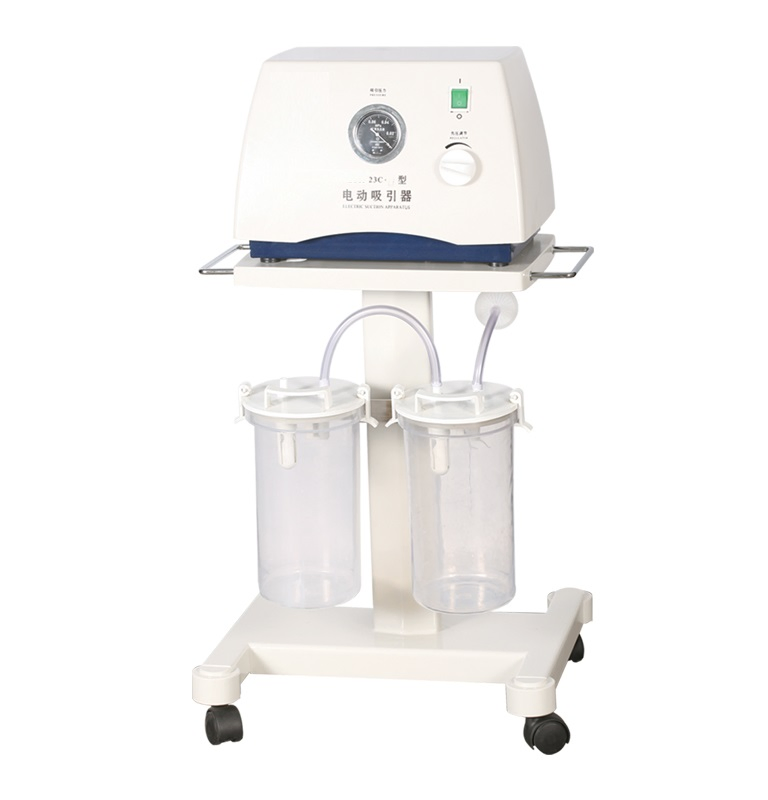

Electrical Suction Device (AM-23C. II)
