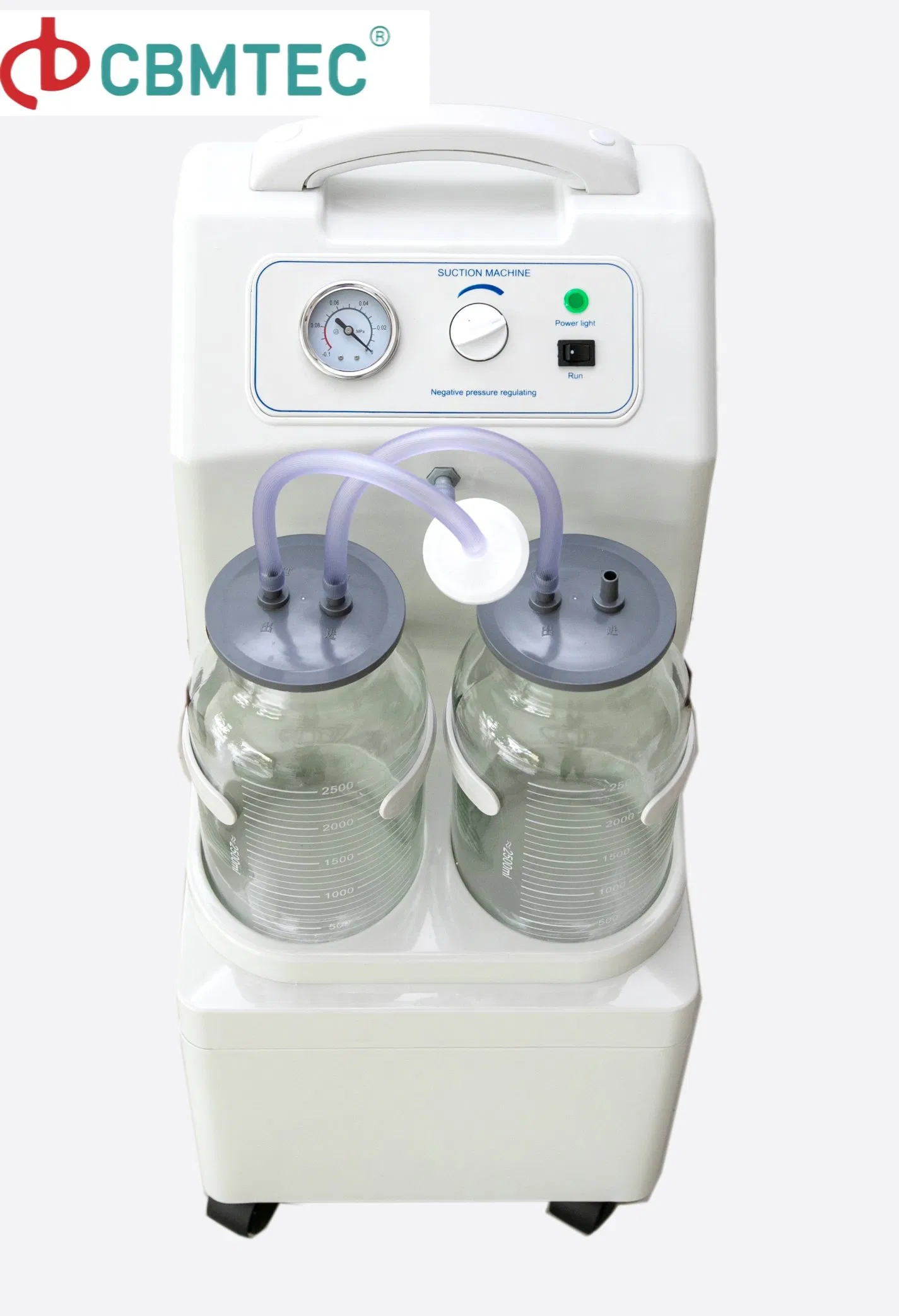

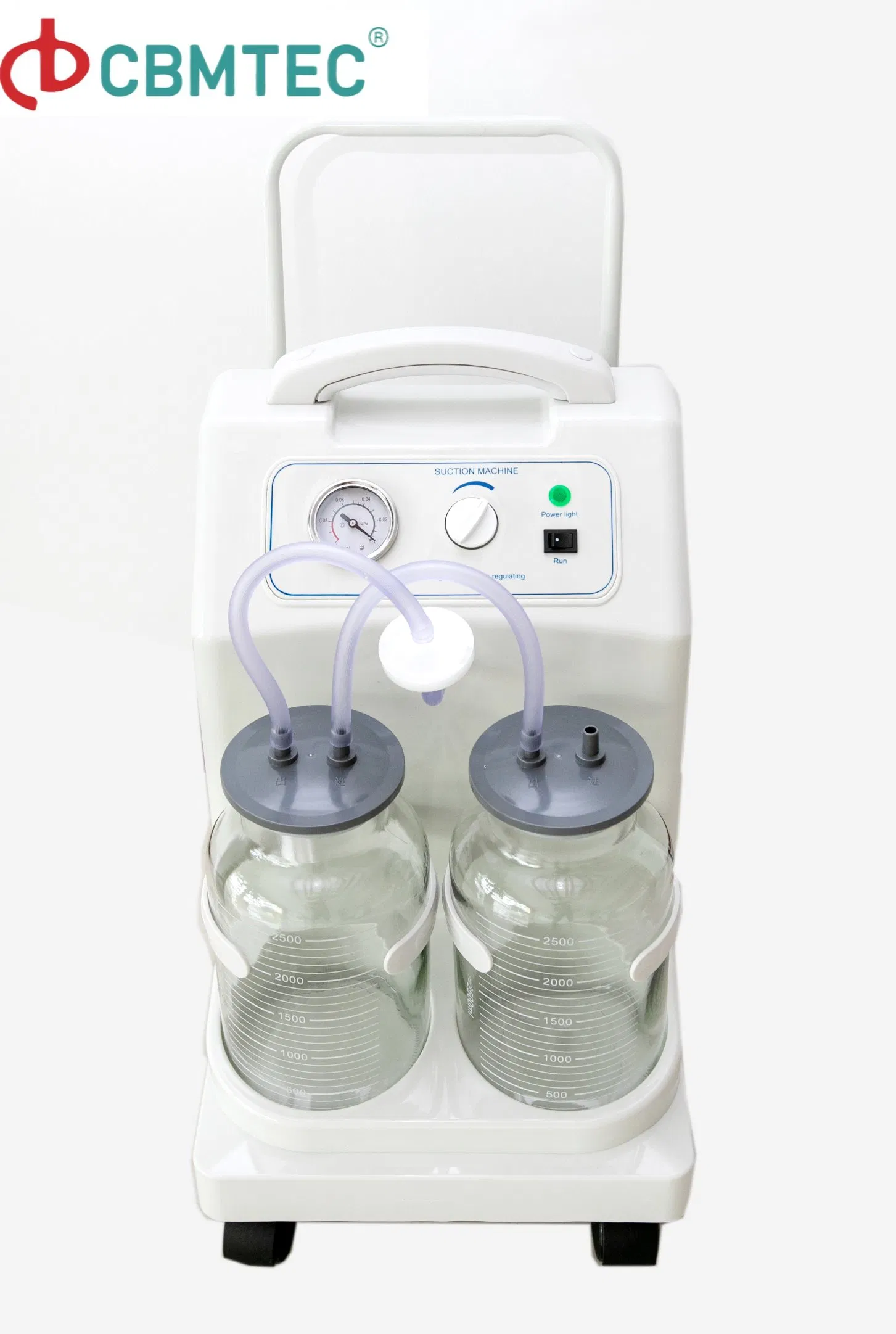

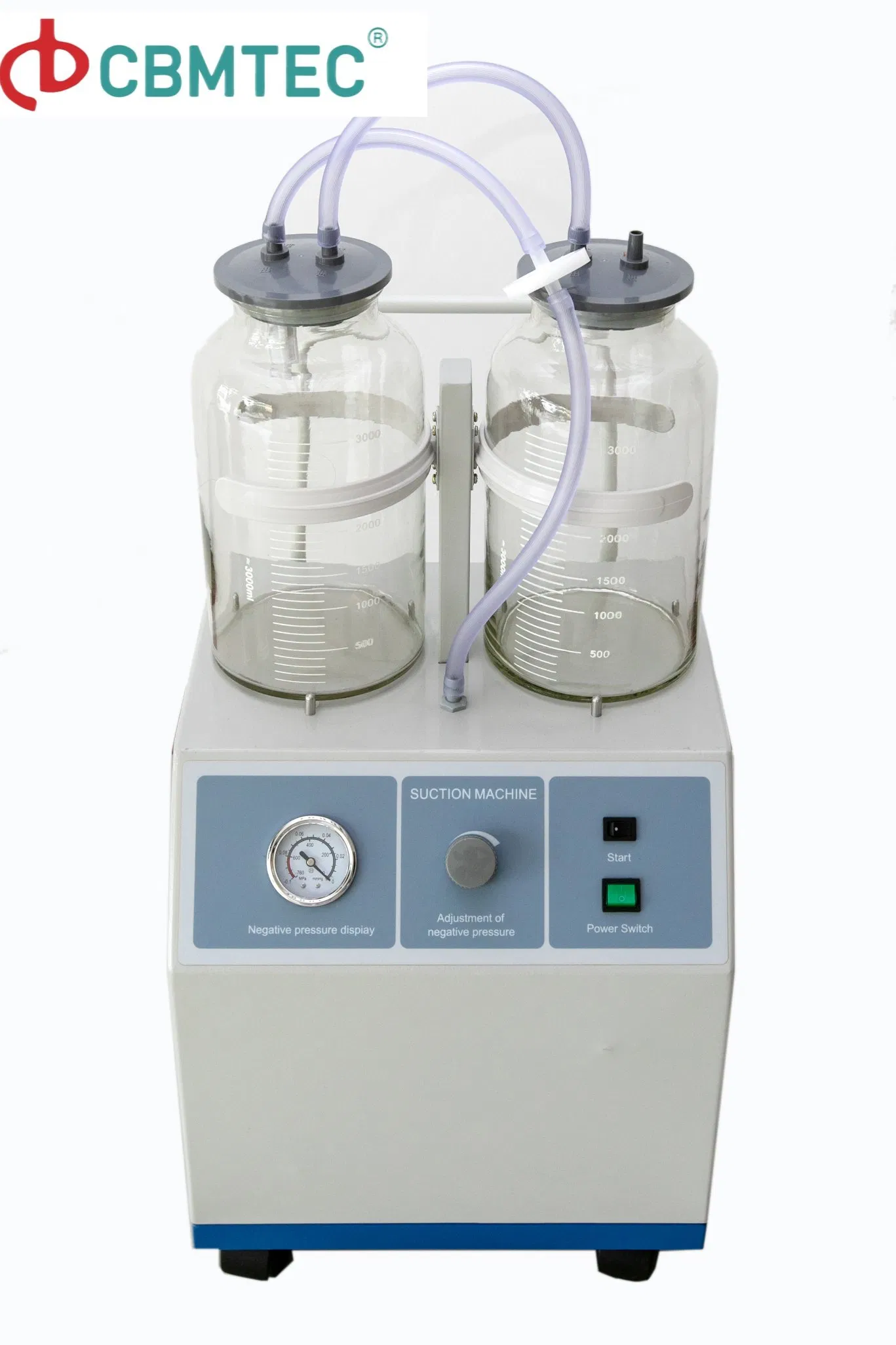

Medical Double Bottles Suction Trolley Vacuum Aspirator Suction Device

1 / 5

Medical Double Bottles Suction Trolley Vacuum Aspirator Suction Device

Customization:	Available
Customized:	Customized
Certification:	CE, ISO13485

Send Inquiry

Product Description

📋

Basic Specifications

Colour:White

Sterilizing Volume:18/24L

Timer Range:0-99 Min

Working Pressure:0.14-0.16MPa

Transport Package:Paper Carton

Production Capacity:1200PCS/Month

🏥

Product Overview

Models: KD-3090A, A1, A2

This medical suction device is specifically designed for use in hospital operating rooms. It is highly effective for suctioning pus, blood, sputum, and other fluids from a patient's body cavity. Additionally, it is suitable for use in induced abortion procedures.

⭐

Key Features

Equipped with a high-efficiency plunger pump that requires no lubrication, ensuring a long service life.

Unidirectional suction pump design prevents positive pressure generation.

Integrated excess flow protection device to prevent liquid from entering the pump system.

Parallel connection for hand and foot switches, allowing flexible operation according to user preference.

Low-pressure foot switch control for enhanced safety during operation.

📊

Technical Parameters

Model	KD-3090A	KD-3090A1	KD-3090A2
Max Vacuum	≥0.09MPa (680mmHg)	≥0.09MPa (680mmHg)	≥0.09MPa (680mmHg)
Flow Rate	Terminal ≥32L/min, Exit ≥42L/min	≥0.09MPa (680mmHg)	Terminal ≥20L/min, Exit ≥30L/min
Storage Bottle	Disposable negative pressure drainage bag compatible	Disposable negative pressure drainage bag compatible	Disposable negative pressure drainage bag compatible

📦

Packing & Shipping

We provide secure packing and efficient shipping services. Standard shipping is processed within 5-7 days following 100% payment. We utilize reliable carriers including FedEx, DHL, TNT, EMS, and UPS.

⚙️

Our Services & Quality

We adhere to a "quality first" concept, providing practical and professional medical equipment solutions. Our expertise spans across surgical lights and allied gas items (valves, regulators, and oxygen systems).

Full support for customization based on special requests.

OEM services available for global partners.

Special LOGO printing options.

Professional multi-channel business cooperation.

❓

Frequently Asked Questions

Q1: What are the primary applications for this suction device? A: It is mainly used in hospital operating rooms for suctioning fluids like pus, blood, and sputum, and is also suitable for induced abortion procedures.

Q2: Does the suction pump require regular lubrication? A: No, the device uses a highly efficient plunger pump that is designed to operate without lubrication, reducing maintenance needs.

Q3: How does the overflow protection work? A: The device includes an excess flow protection mechanism that automatically prevents liquid from entering the pump if the storage container becomes full.

Q4: Can I operate the device using a foot switch? A: Yes, both hand and foot switches are available and connected in parallel, allowing the operator to choose their preferred method.

Q5: Is customization or OEM branding available? A: Yes, we support OEM services, special logo printing, and customization based on specific requirements.

Q6: What is the typical lead time for orders? A: Standard orders are typically shipped within 5-7 days after full payment is received.
