ERCP (Endoscopic Retrograde Cholangiopancreatography) is a minimally invasive procedure combining endoscopy and fluoroscopy to diagnose and treat disorders of the biliary and pancreatic ductal systems.
🚀 Key Features
Advanced Fluoroscopy Integration: High-resolution imaging with real-time X-ray guidance for precise catheter and stent placement.
Therapeutic Capabilities: Supports stone extraction, stent placement, sphincterotomy, and biopsy.
Ergonomic Design: Lightweight endoscope with intuitive controls for operator comfort.
Radiation Safety: Low-dose imaging protocols and lead shielding compatibility.
Compatibility: Works with contrast agents and guidewires for optimal duct visualization.
🏥 Clinical Applications
Bile duct stones
Biliary strictures or leaks
Pancreatic duct disorders
Tumor diagnosis (e.g., cholangiocarcinoma)
✅ Main Advantages
Precision: Enhanced imaging reduces procedural time and complication risks.
Versatility: Combines diagnostic and therapeutic functions in one system.

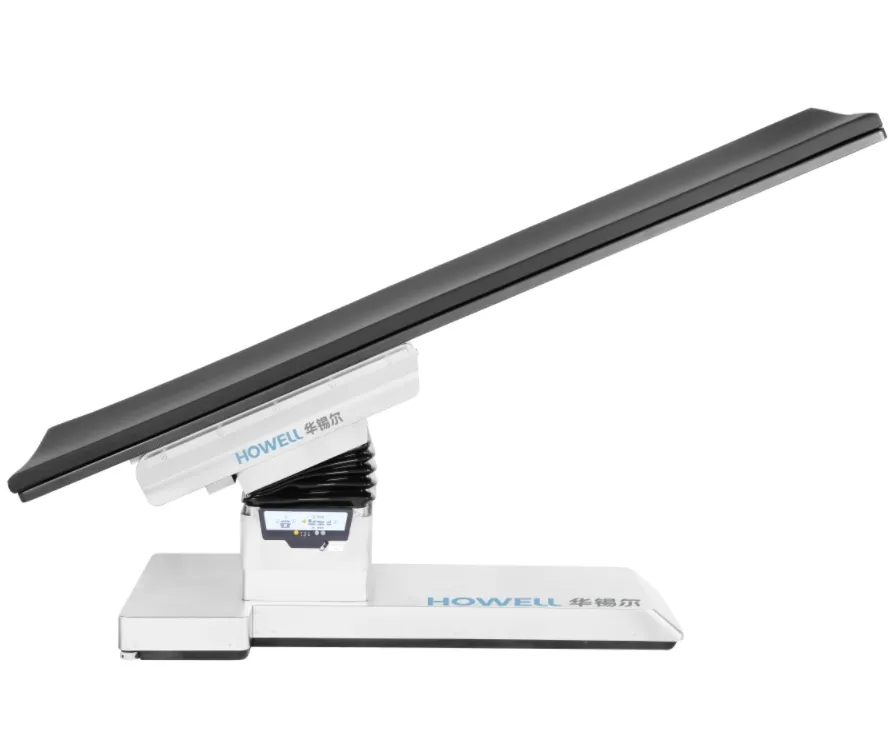

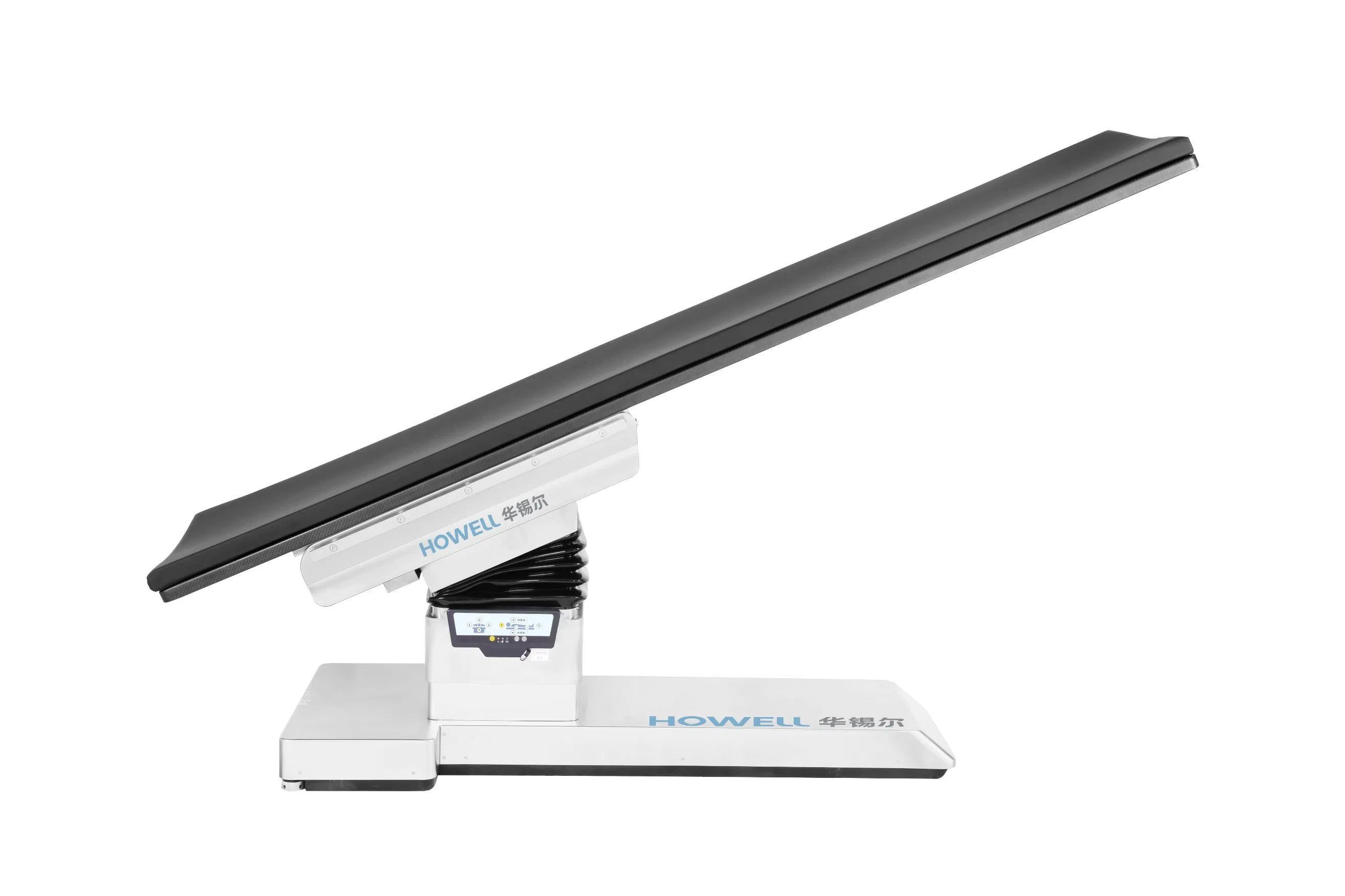

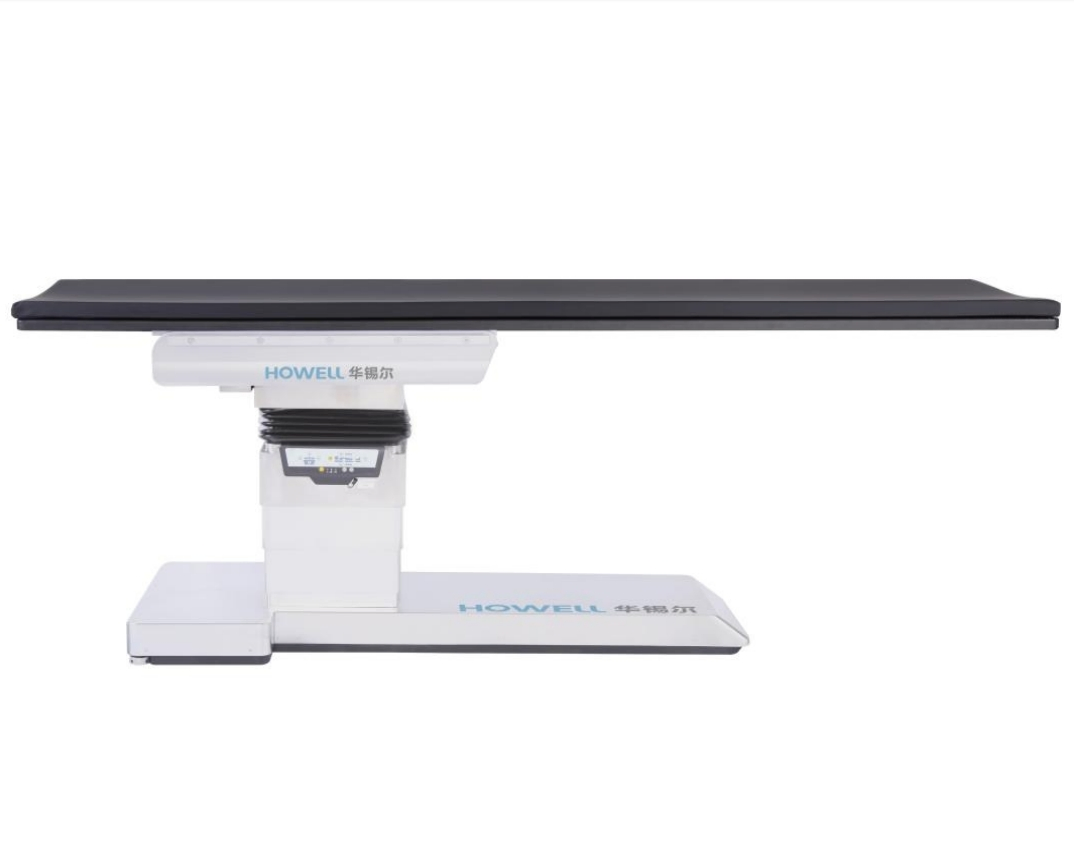

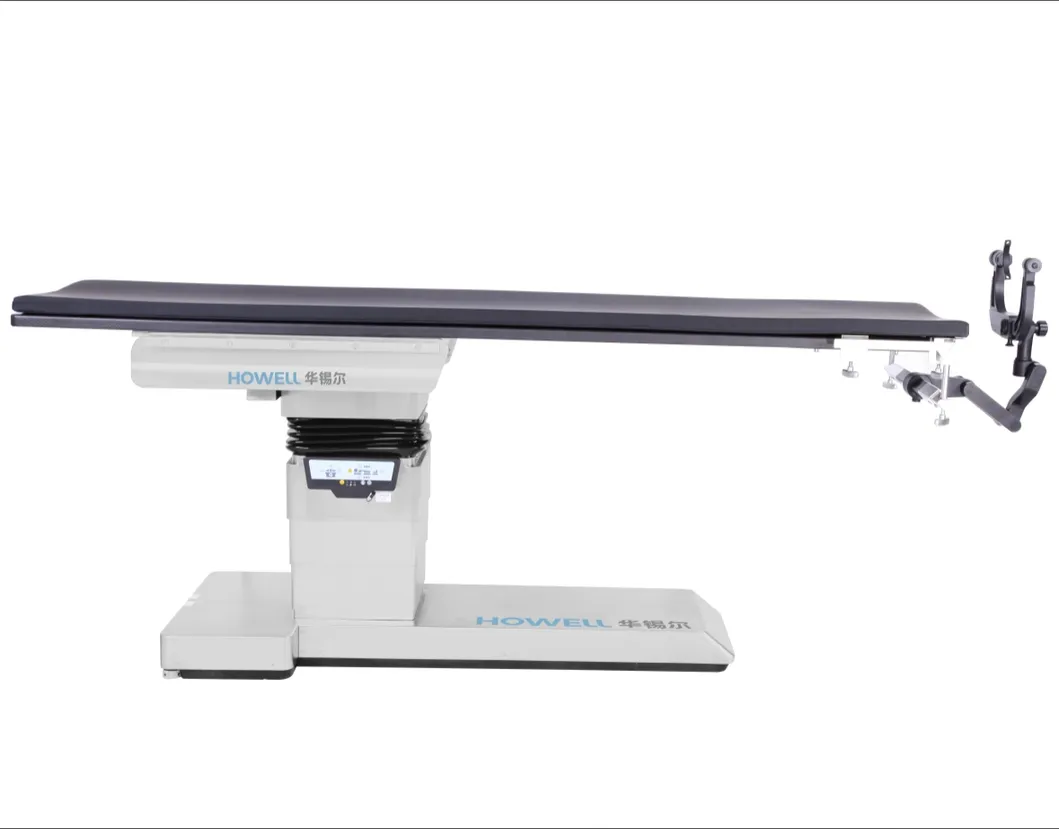

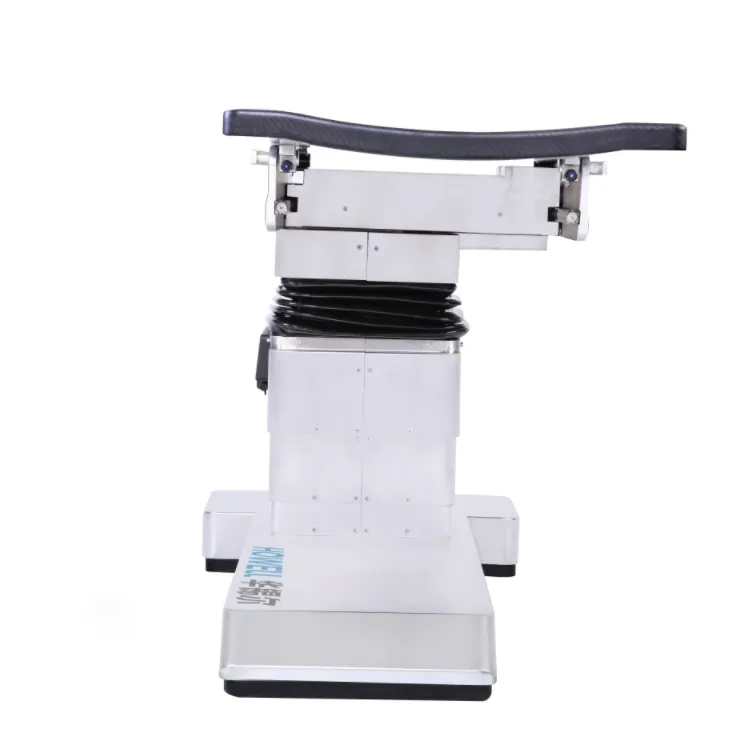

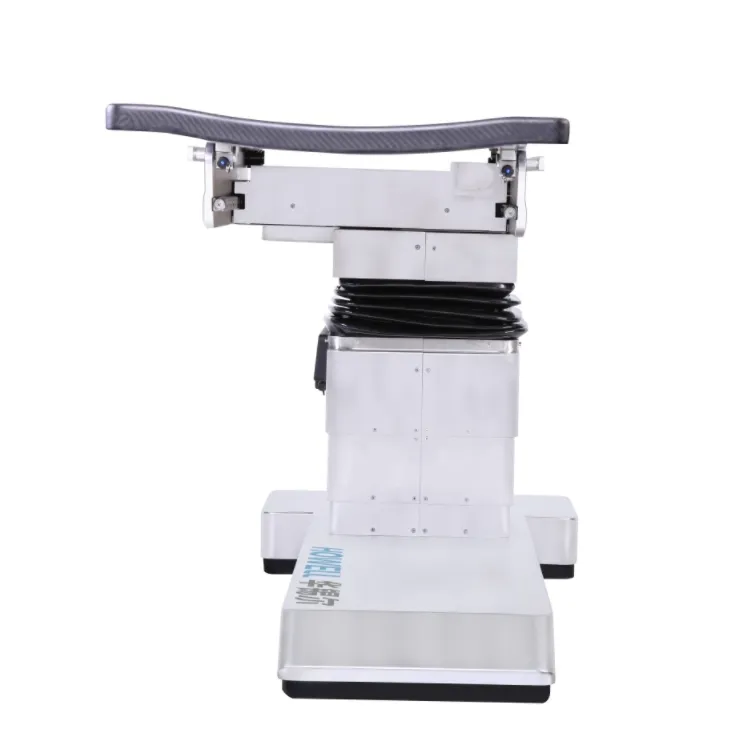

The electric hydraulic interventional operating table is specially designed for minimally invasive treatment and modern medical imaging diagnostic technology. It is suitable for departments such as orthopedics, urology, thoracic surgery, and interventional departments requiring C-arm, X-ray, O-arm, or mobile CT compatibility.
Interventional Radiology Table
Cardiac Catheterization Table
Endoscopy Procedure Table
Vascular Surgery Bed
Hybrid Operating Room Table

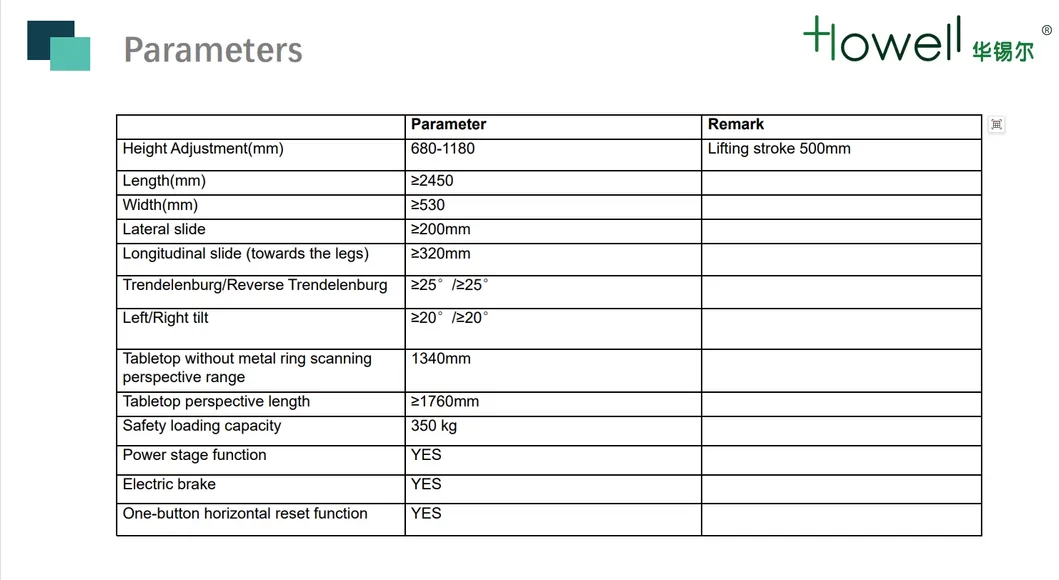

Table Length
≥2450mm
Table Width
≥530mm
Lifting Height
680mm - 1180mm (Stroke: 500mm)
Forward/Backward Tilt
≥25°
Left/Right Tilt
≥20°
Longitudinal Translation
≥320mm
Lateral Translation
≥200mm
Perspective Range
1330mm (Metal-free ring scanning)
Load Capacity
≥350kg
Special Functions
Power storage, electric brake, horizontal reset
Frequently Asked Questions
What imaging equipment is the HE-608S compatible with?
The table is fully compatible with C-arm, X-ray machines, O-arm systems, and mobile CT machines, making it ideal for imaging-heavy procedures.
What is the maximum weight capacity of this operating table?

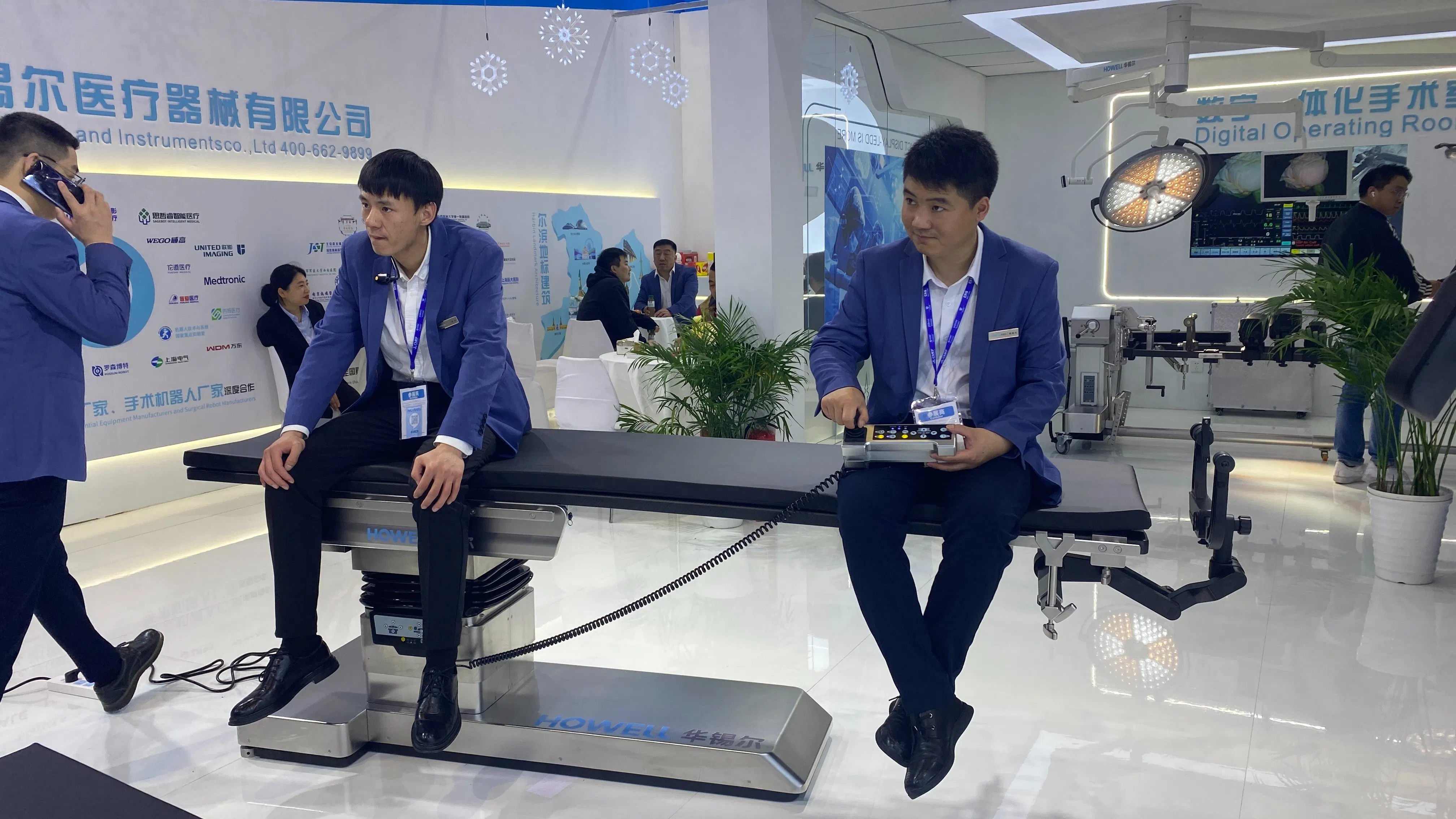

The HE-608S supports a heavy-duty load capacity of ≥350kg, accommodating a wide range of patient profiles safely.
How does the control system work?

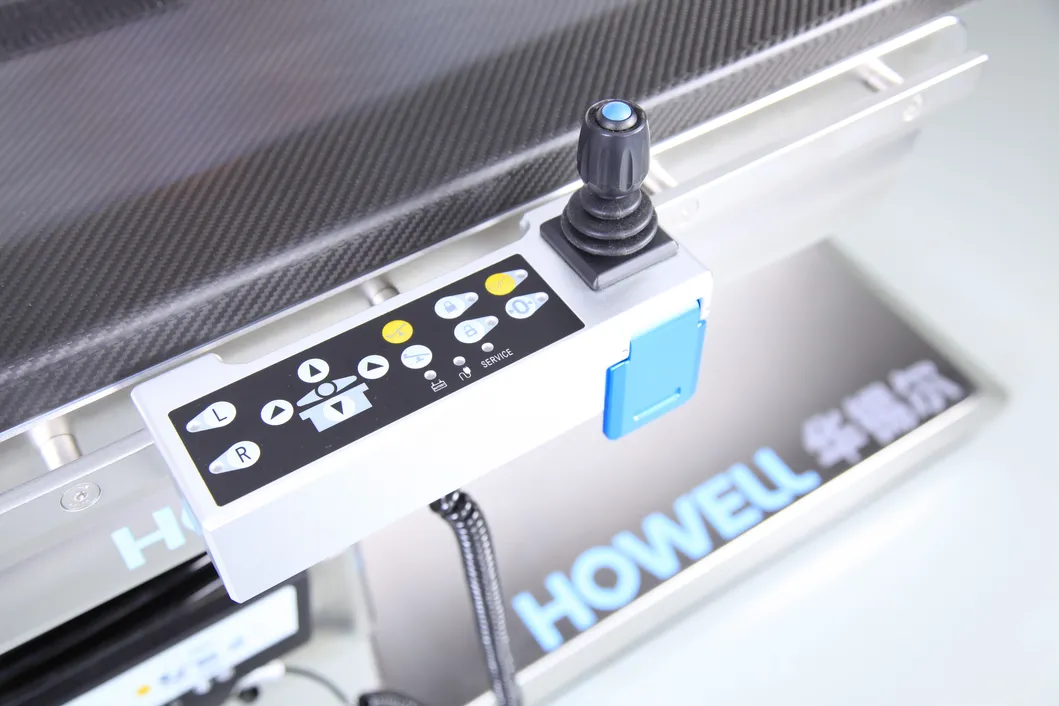

It features a dual console system, including a movable table-top console and a bed-side console. Wireless and foot pedal consoles are also available as options.
Does the table support longitudinal and lateral translation?
Yes, it supports longitudinal translation (towards legs) ≥320mm and lateral translation ≥200mm for optimal patient positioning during surgery.
What are the power and safety features?
The table includes built-in power storage for backup, electric brakes for stability, and a one-button horizontal reset function for emergency use.
Is the table suitable for specific specialized surgeries?
Absolutely. It is designed for ERCP, orthopedic, urological, thoracic, renal, respiratory, and cardiovascular interventional procedures.
