📋 Basic Information
Model NO.
Blood pressure monitor
Group
Infants and Young Children
Specification
58X28X32 cm

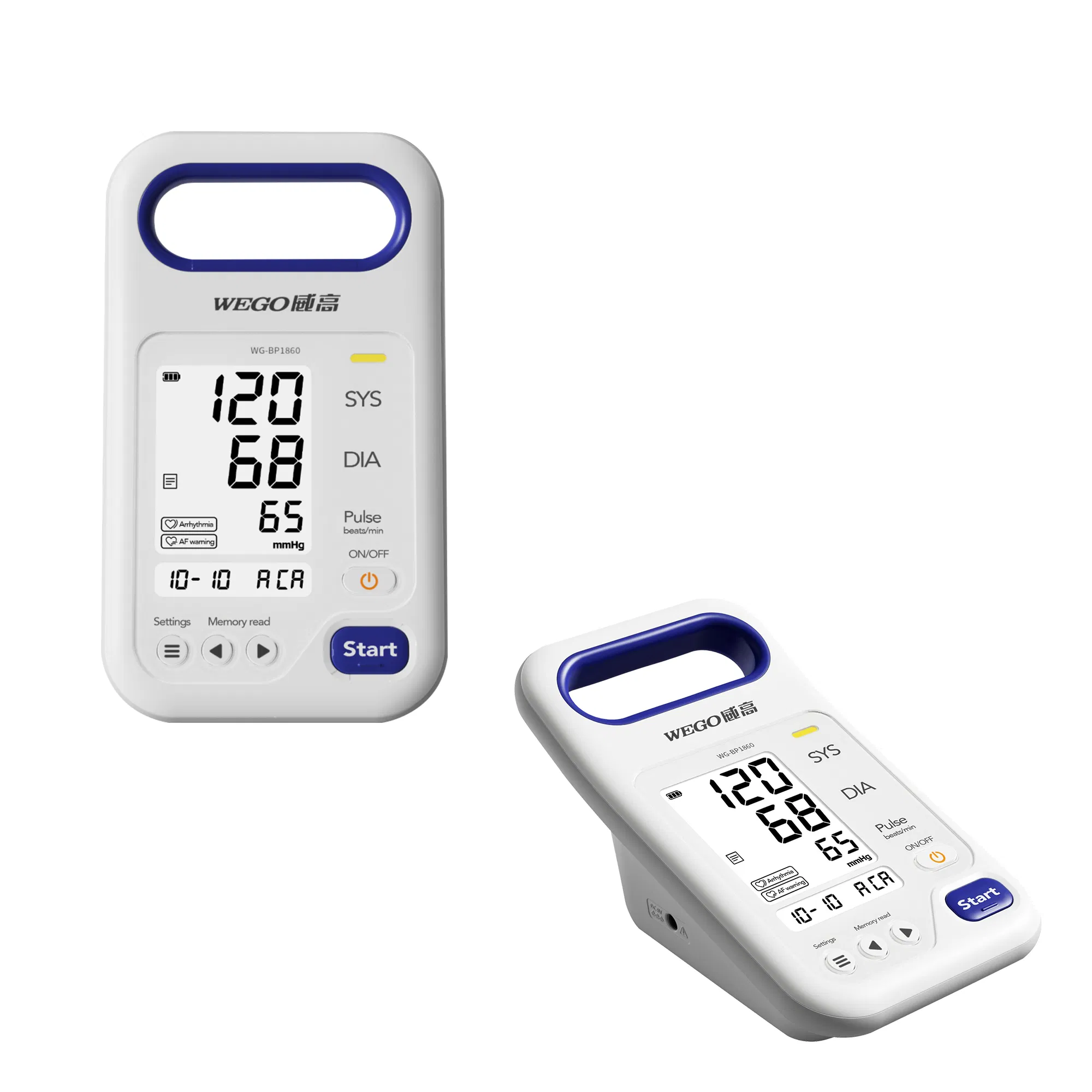

🖼️ Product Display

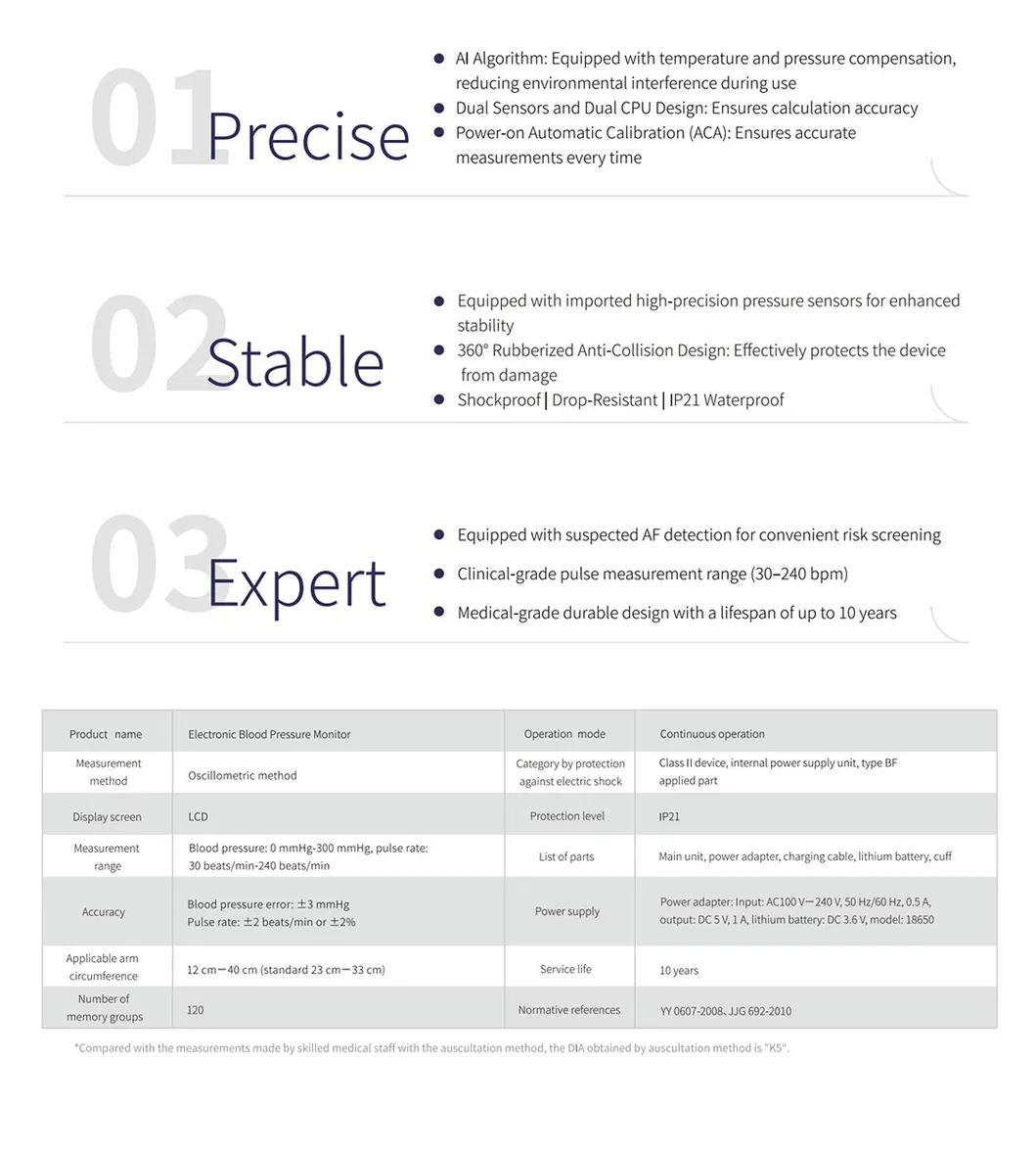

🔍 Technical Specifications
| Product Name |
Electronic Blood Pressure Monitor |
Operation Mode |
Continuous operation |
| Measurement Method |
Oscillometric method |
Protection Category |
Class II device, Type BF applied part |
| Display Screen |
LCD |
Protection Level |
IP21 |
| Measurement Range |
BP: 0-300 mmHg, Pulse: 30-240 beats/min |
List of Parts |
Main unit, adapter, cable, battery, cuff |
| Accuracy |
BP Error: ±3 mmHg, Pulse: ±2 beats/min or 2% |
Power Supply |
AC100V-240V Input / DC5V Output; 3.6V Lithium Battery |
| Arm Circumference |
12 cm - 40 cm (Standard 23-33 cm) |
Service Life |
10 years |
| Memory Groups |
120 groups |
Normative References |
YY 0607-2008, JJG 692-2010 |
✨ Product Features
●
Intelligent AI algorithm with built-in temperature and pressure compensation, offering strong anti-interference ability.
●

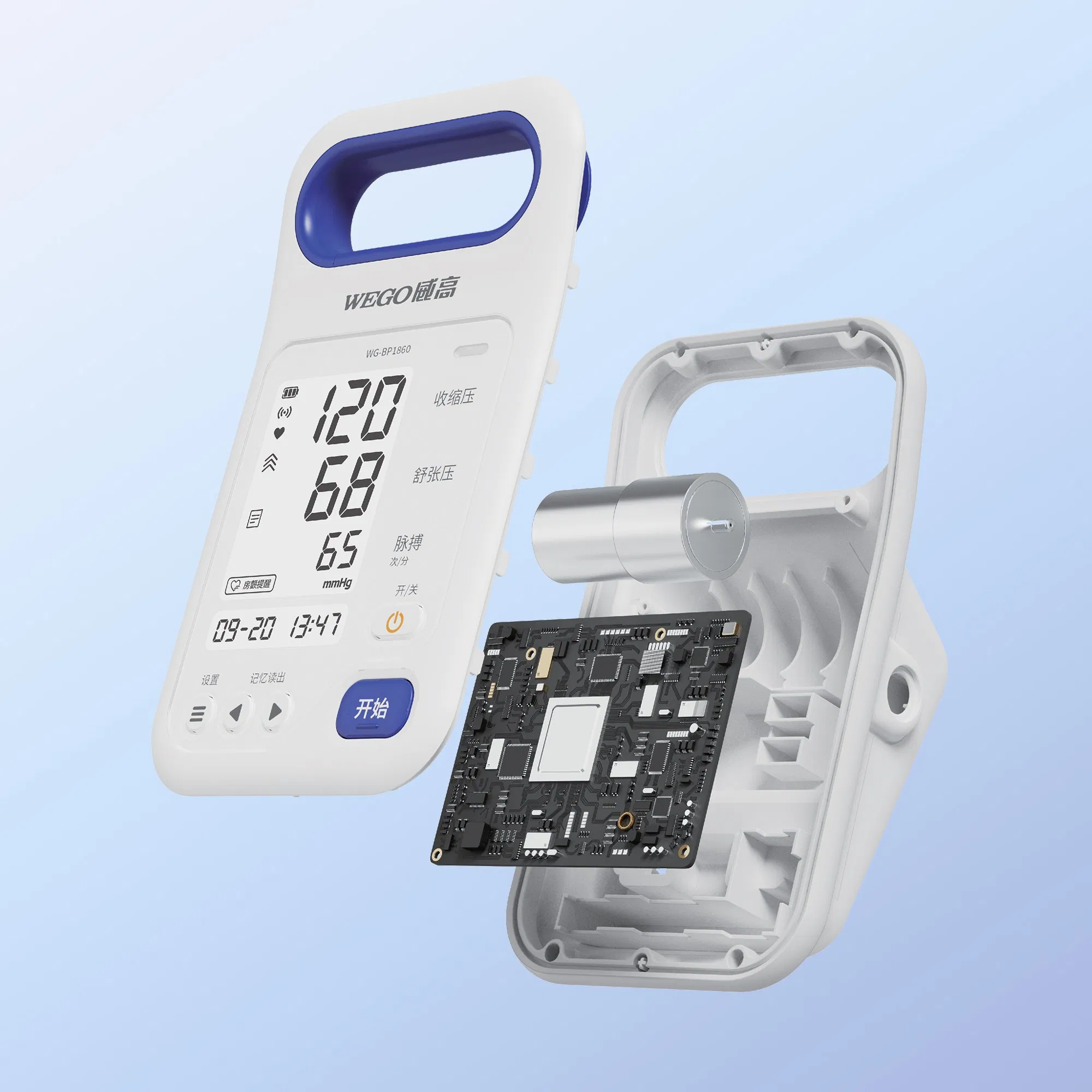

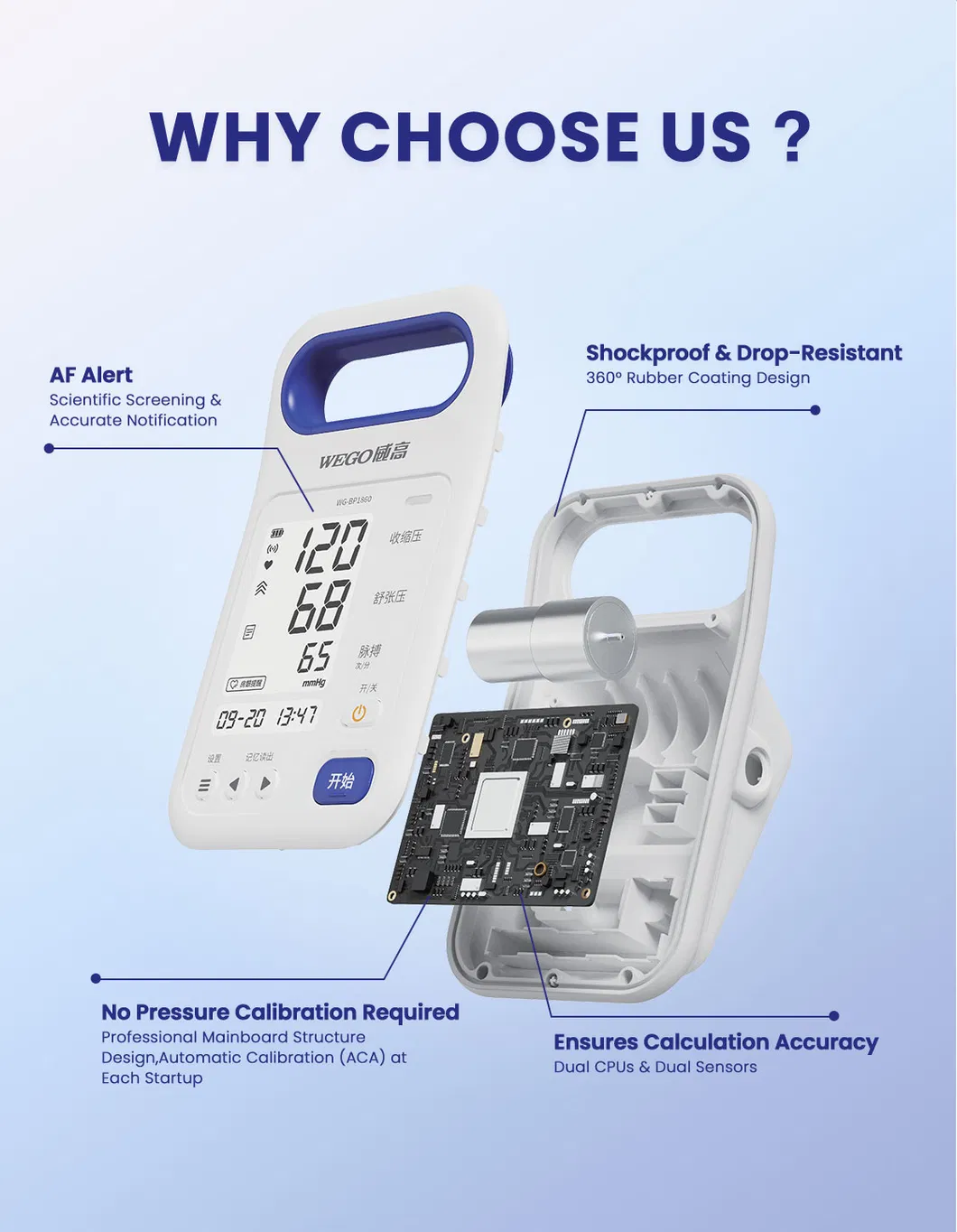

ACA automatic calibration upon startup (dual sensor design) ensures accurate and error-free measurements every time.
●

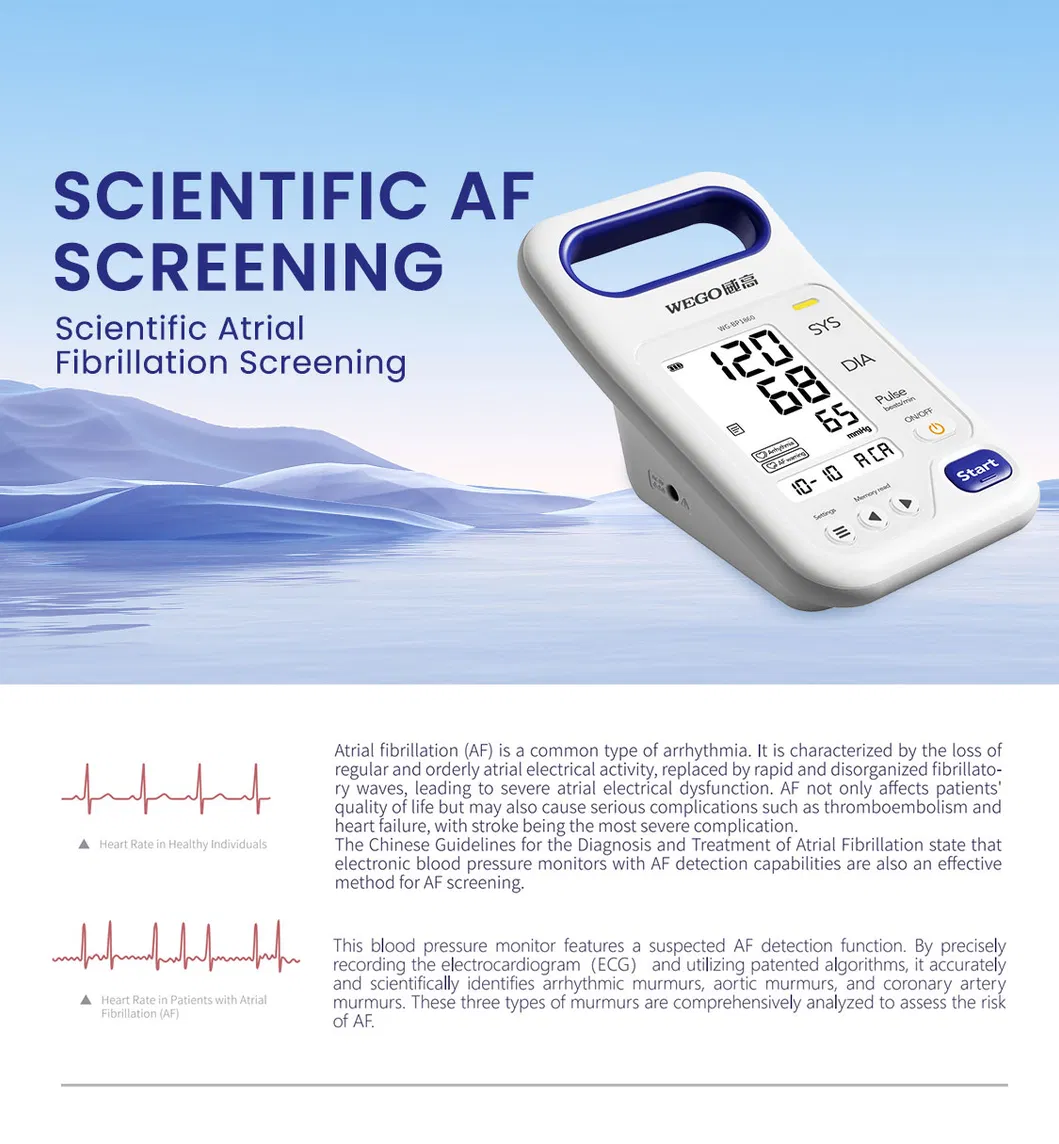

Scientific atrial fibrillation warning to assist in initial screening of health risks.
●
Monitoring level pulse rate detection range (30~240 beats/minute).
●
360° rubber wrap design: shock and drop resistant with a portable structure.
●
Multiple cuff configurations available (Medical S/M/L, Home TH) with a shelf life of 10 years.
❓ Frequently Asked Questions
1. How accurate is this electronic blood pressure monitor?
The device provides clinical-grade accuracy with a blood pressure error range of only ±3 mmHg and a pulse rate accuracy within ±2 beats/min or 2%.
2. What are the power supply options for this device?
The monitor features dual power support. It can be powered by its internal 3.6V lithium battery (Model 18650) or via the included AC power adapter (100V-240V).
3. Can this device detect heart health risks beyond blood pressure?
Yes, it includes a scientific atrial fibrillation warning system and monitor-level pulse detection (30-240 bpm) to help in the early screening of potential health risks.
4. What arm sizes is the cuff compatible with?
The standard cuff covers 23 cm to 33 cm, but the device supports an applicable arm circumference range of 12 cm to 40 cm with different cuff configurations.
5. How many users can store their data on this monitor?
The monitor is equipped with a memory capacity of 120 groups, allowing for long-term tracking of blood pressure trends.
6. Is the device durable for frequent travel?
Absolutely. It features a 360° rubber wrap designed to be shock and drop resistant, making it highly portable and durable for home or travel use.
