Angiography Catheter Vertebral Vascular System During Diagnostic Endovascular Procedures

1 / 5

Angiography Catheter Vertebral Vascular System During Diagnostic Endovascular Procedures

Still deciding? Get samples of $ !

Request Sample

Send Inquiry

Product Description

📋

Basic Specifications

Model NO.

RH630-4.2-80 / SM510-4.2-100 / HH371-4.2-100

Sterilization

Ethylene Oxide (EO)

Guarantee Period

3 Years

Group

Adult

Name

Angiographic Catheter

Application

Peripheral Vascular System

Package

Sterile Paper Bag + Inner Box + Outer Box

Origin

China

🔍

Product Overview

Coronary angiographic Catheters are designed to provide a pathway for delivering contrast media to selected sites in the coronary vascular system.

Angiographic Catheter is mainly composed of tube body (Flexible catheter, hard catheter), and stopcocks (two-way). The Angiographic Catheter is intended for use in angiographic procedures. It delivers radiopaque media and therapeutic agents to selected sites in the peripheral vascular system.

✨

Key Features

🛡️

Atraumatic Tip: Soft tip designed to reduce the risk of trauma during contrast injection.

👁️

High Visibility: Highly radiopaque material promotes clear fluoroscopic visualization.

⚙️

Durable Hub: Fluted hub designed to ease guidewire manipulation and provide kink-resistance.

🔄

Versatile Shapes: Wide variety of shapes to meet individual clinical requirements.

📊

Technical Parameters

Terminal Configuration	Models	Outer Diameter (Fr/mm)	Internal Diameter (mm)	Effective Length (cm)
Hepatic artery (RH)	RH630-4.2-80	4.2/1.4	1.0	80
Hepatic artery (RH)	RH630-5-80	5/1.7	1.03	80
Simmons tube (SM)	SM510-4.2-100	4.2/1.4	1.0	100
	SM510-5-100	5/1.7	1.03	100
	SM511-4.2-100	4.2/1.4	1.0	100
	SM511-5-100	5/1.7	1.03	100
	SM512-4.2-100	4.2/1.4	1.0	100
	SM512-5-100	5/1.7	1.03	100
Hunter head (HH)	HH371-4.2-100	4.2/1.4	1.0	100
Hunter head (HH)	HH371-5-100	5/1.7	1.03	100
Renal artery (HS)	HS640-4.2-80	4.2/1.4	1.0	80
	HS640-5-80	5/1.7	1.03	80
	HS641-4.2-80	4.2/1.4	1.0	80
	HS641-5-80	5/1.7	1.03	80
Cobra tube (CB)	CB230-4.2-80	4.2/1.4	1.0	80
	CB230-5-80	5/1.7	1.03	80
	CB231-4.2-80	4.2/1.4	1.0	80
	CB231-5-80	5/1.7	1.03	80
	CB232-4.2-80	4.2/1.4	1.0	80
	CB232-5-80	5/1.7	1.03	80

🖼️

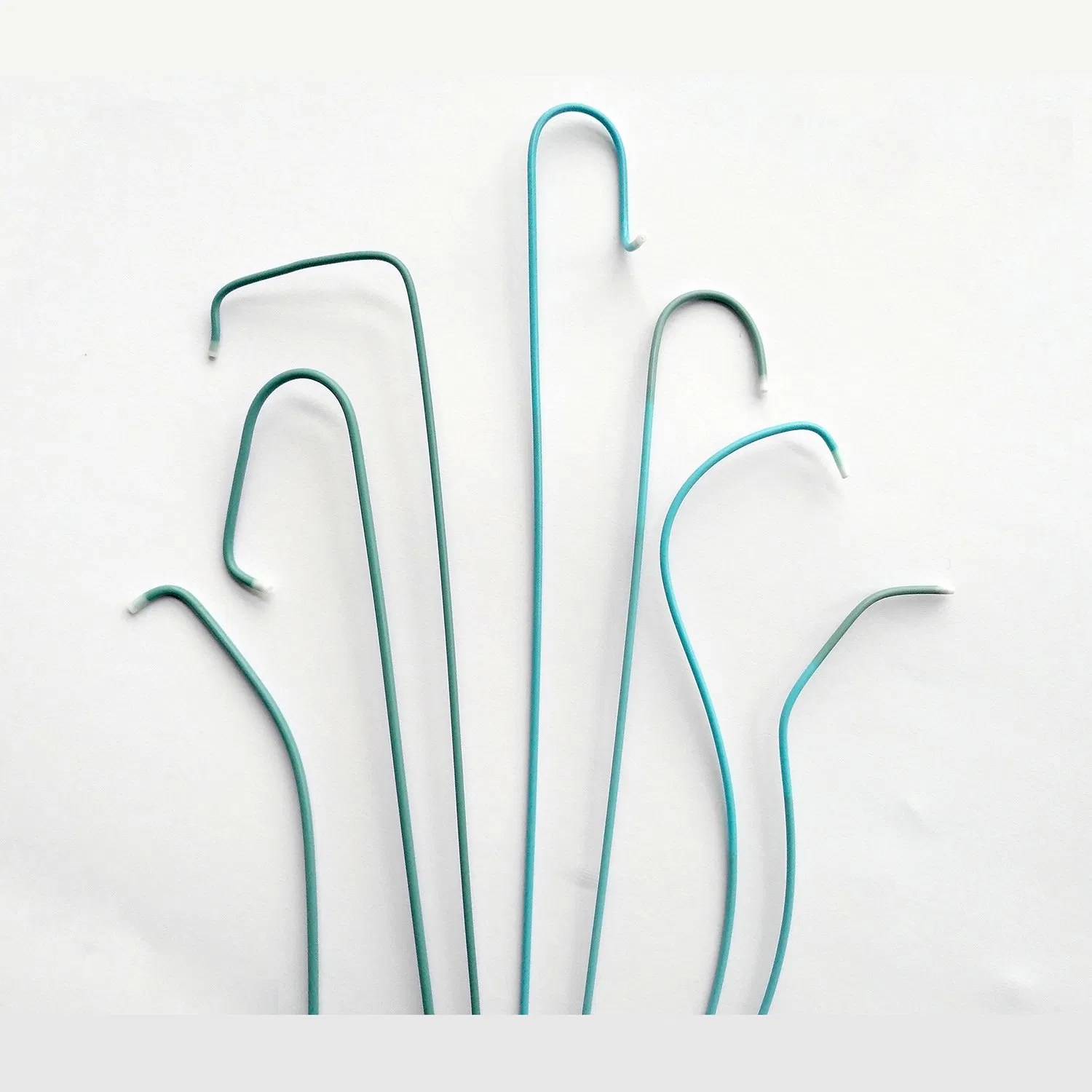

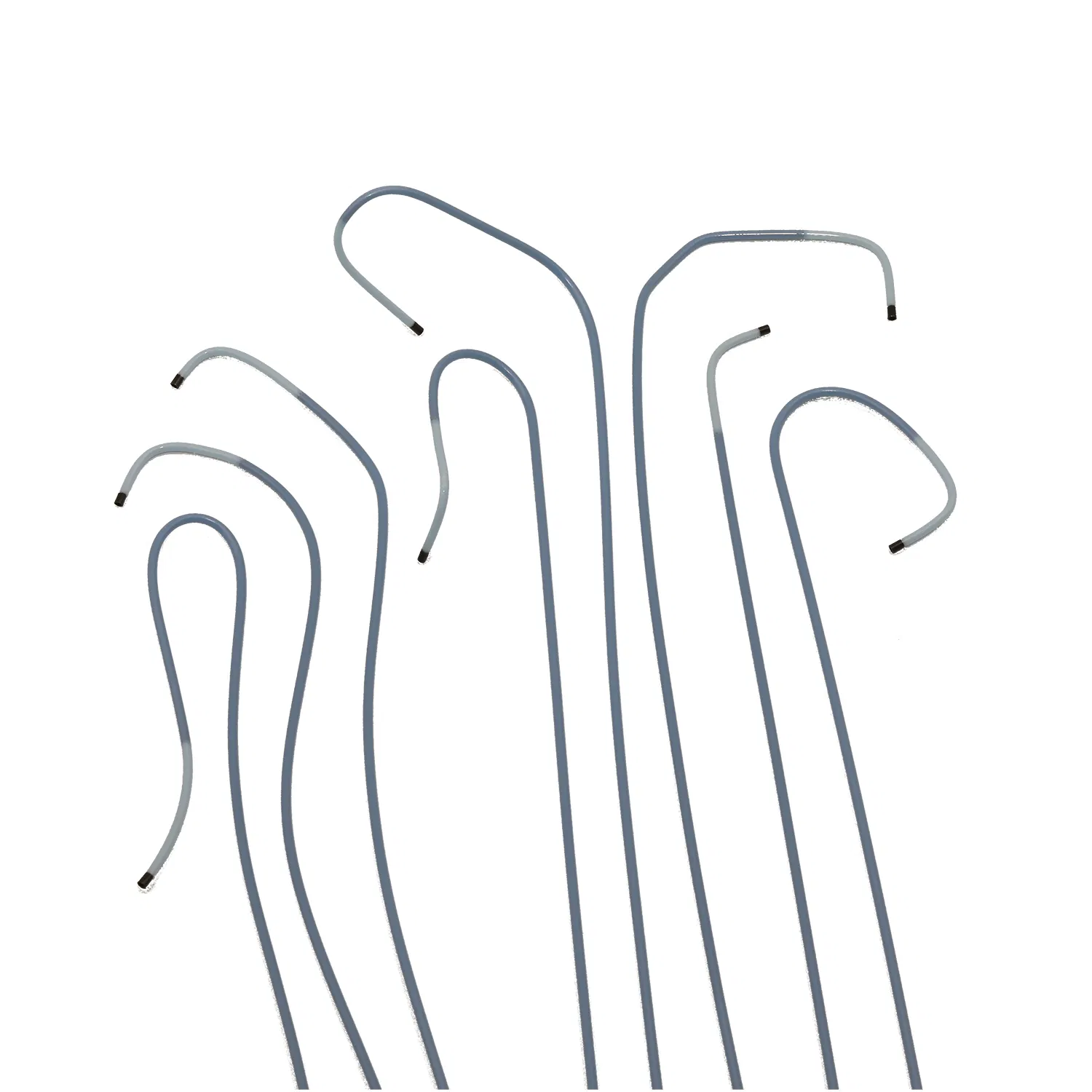

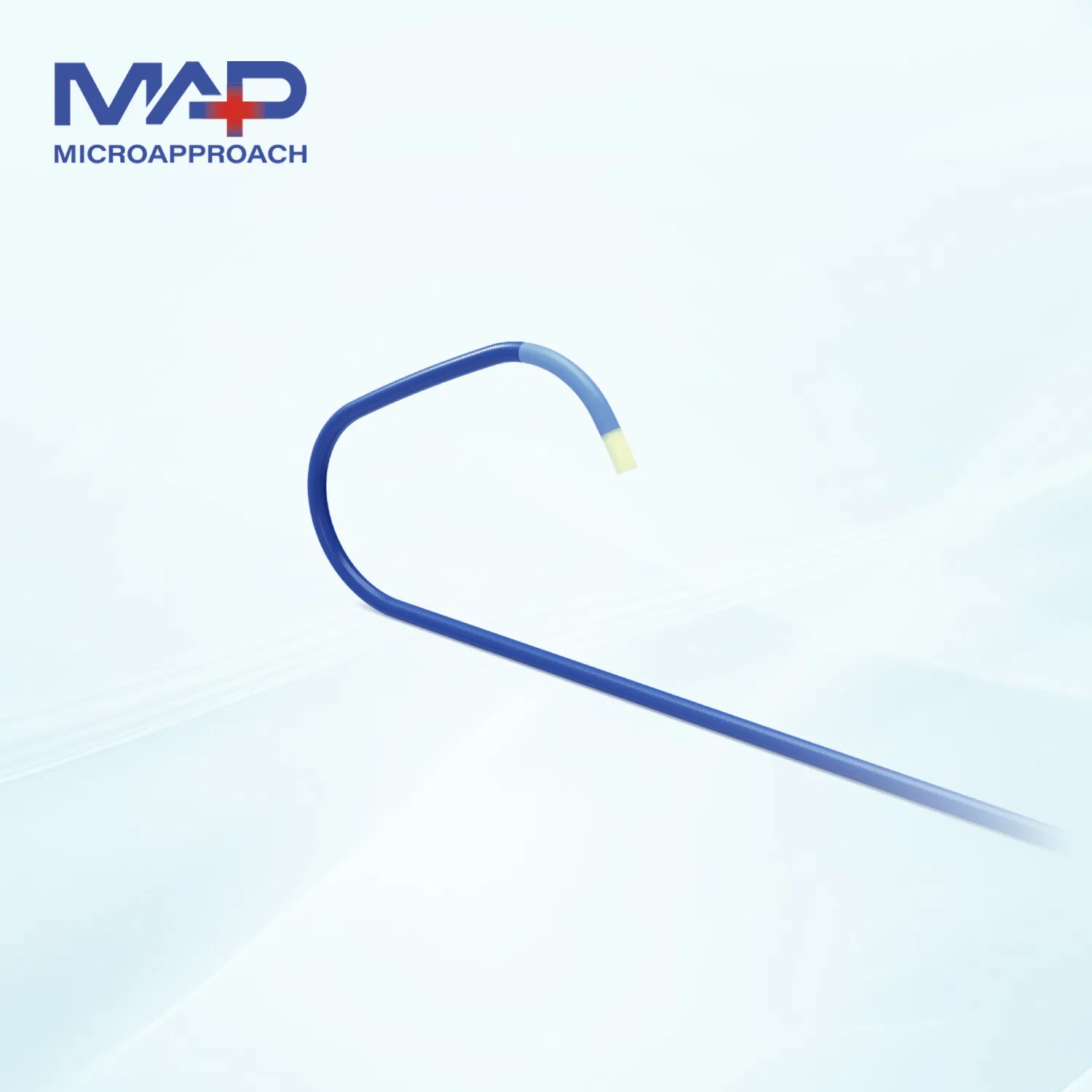

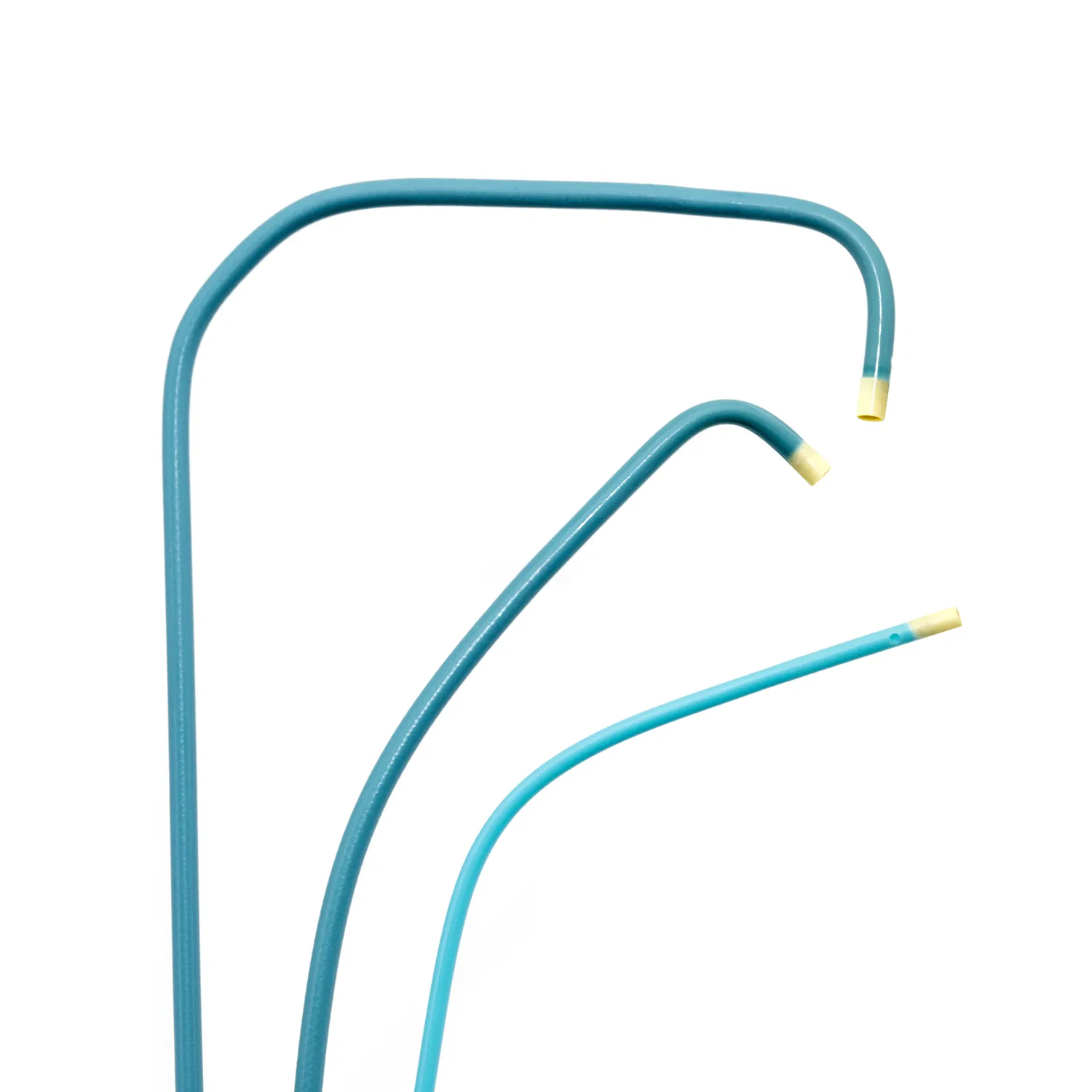

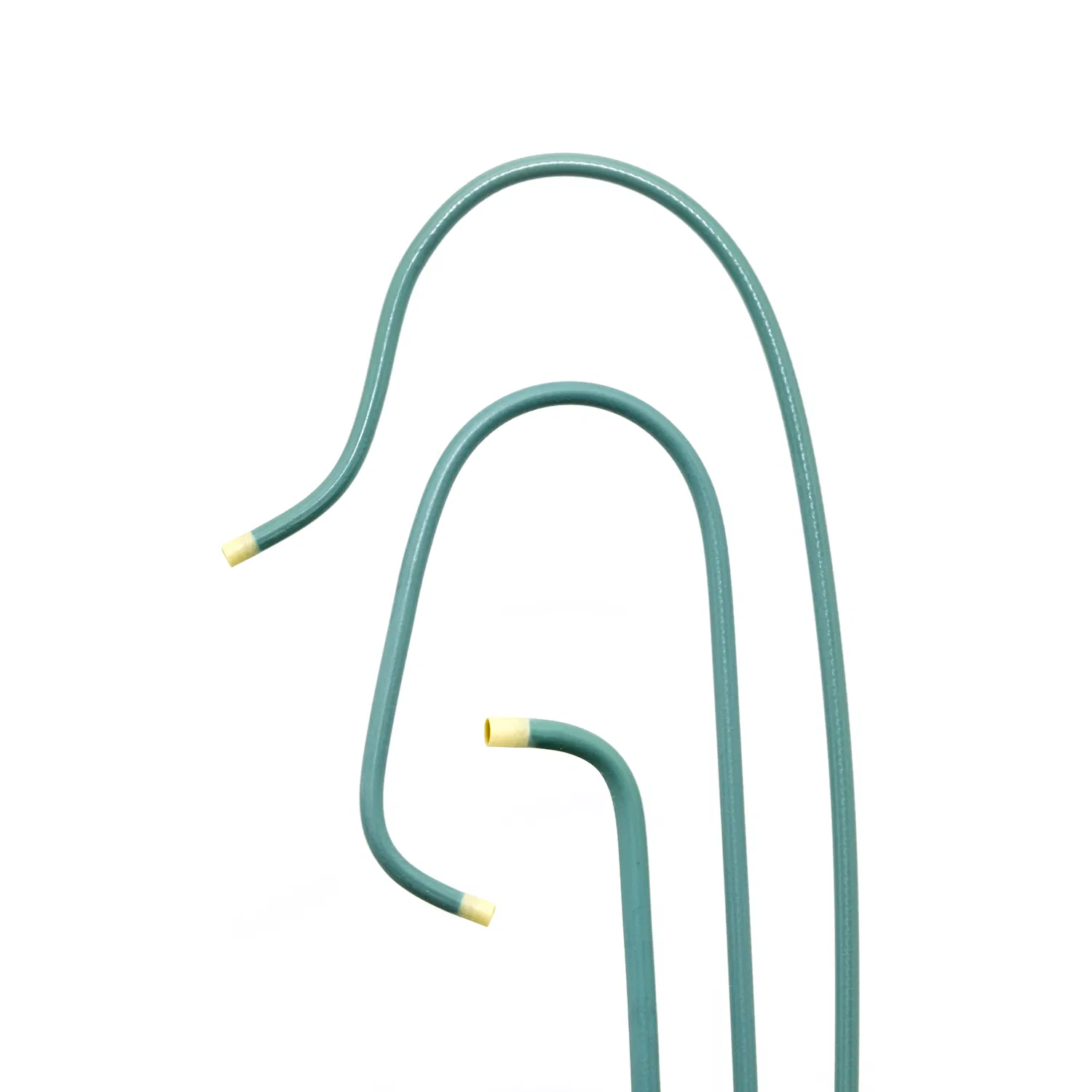

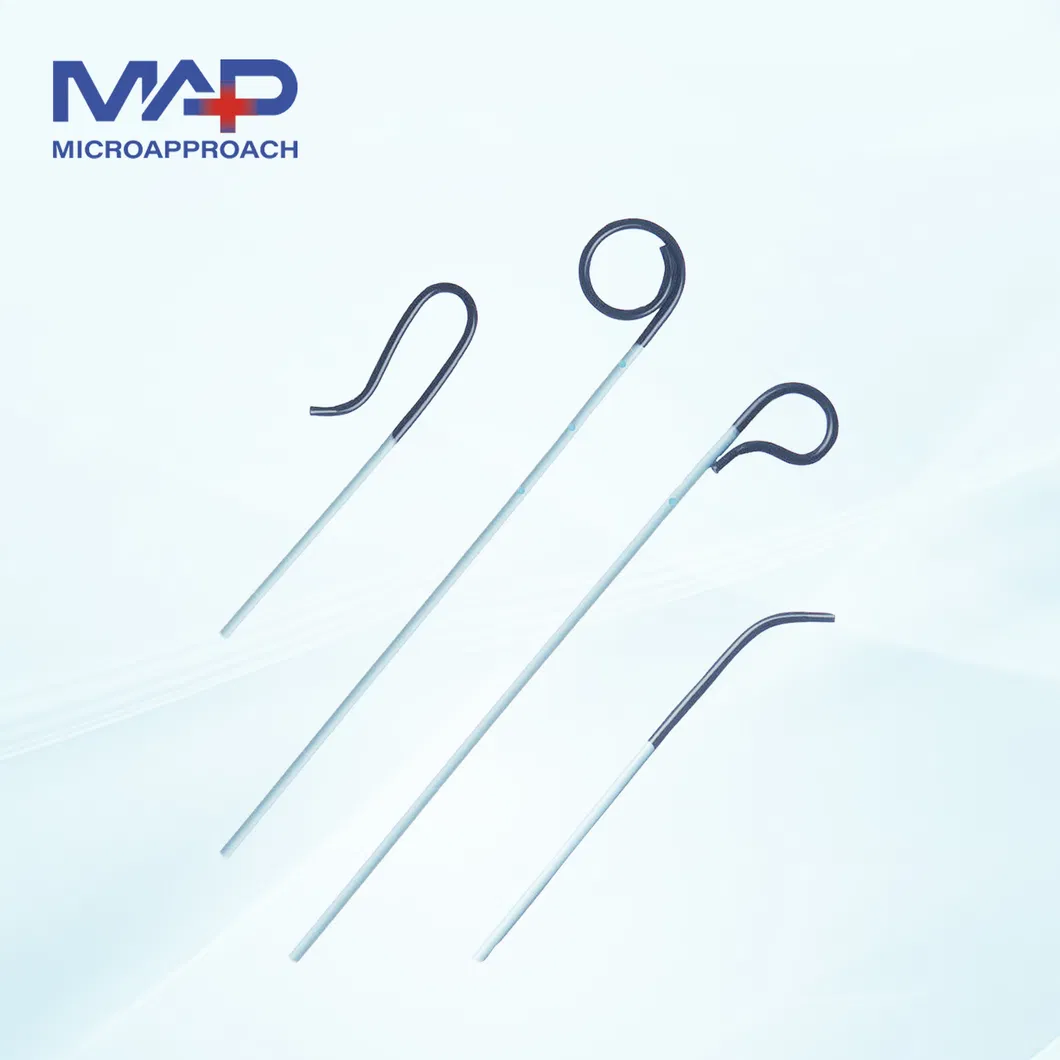

Visual Reference

❓

Frequently Asked Questions

1. What is the primary use of the Angiographic Catheter?

It is primarily used to deliver radiopaque contrast media and therapeutic agents to specific sites within the peripheral and coronary vascular systems during diagnostic procedures.

2. How is the product sterilized for safety?

All catheters undergo Ethylene Oxide (EO) sterilization to ensure they are medical-grade and safe for endovascular procedures.

3. What are the benefits of the soft tip design?

The soft tip is engineered to be atraumatic, significantly reducing the risk of vessel wall damage or trauma during contrast injection.

4. Can these catheters be clearly seen under X-ray?

Yes, they are made from highly radiopaque materials that ensure excellent fluoroscopic visualization for precise positioning.

5. What is the typical shelf life of these catheters?

The product comes with a quality guarantee period of 3 years from the date of manufacture, provided the sterile packaging remains intact.

6. Are there different shapes available for specific procedures?

Yes, we offer a wide variety of terminal configurations including Hepatic (RH), Simmons (SM), Hunter head (HH), Renal (HS), Cobra (CB), and more to meet diverse clinical needs.
