Product Description

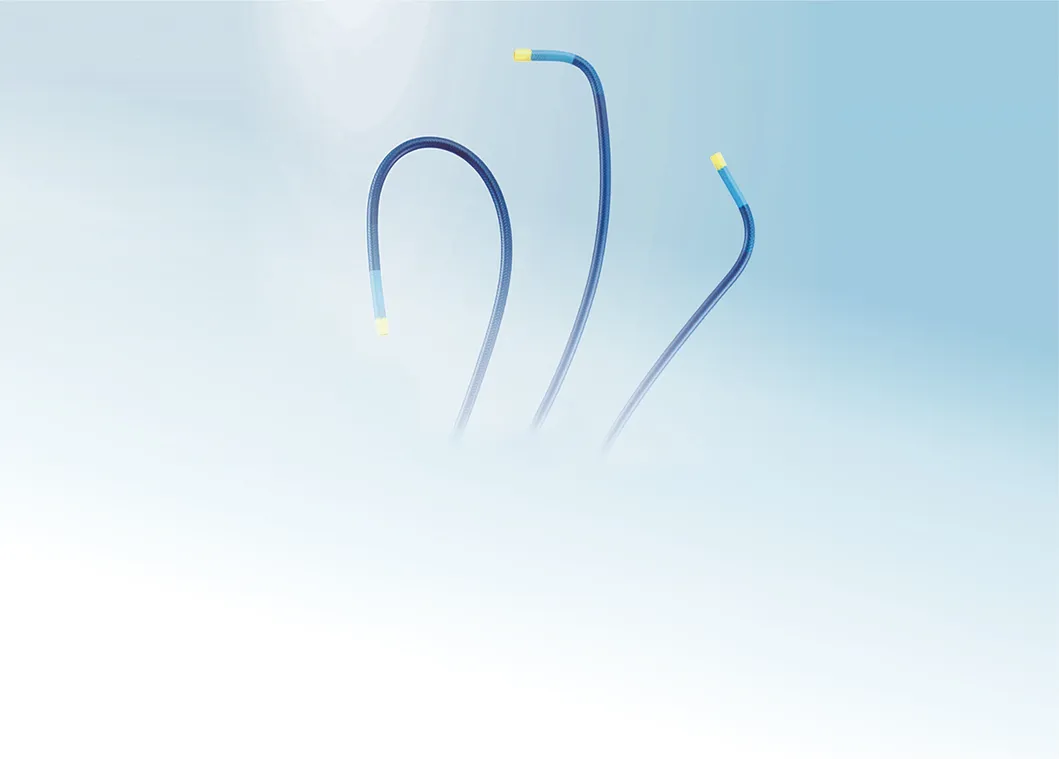

The MicroApproach Angiographic Catheter is designed to deliver radiopaque contrast medium to selected sites in the vascular system for diagnostic purposes. With advanced braiding technology and an atraumatic tip, it ensures excellent pushability and torque control while minimizing vessel trauma.

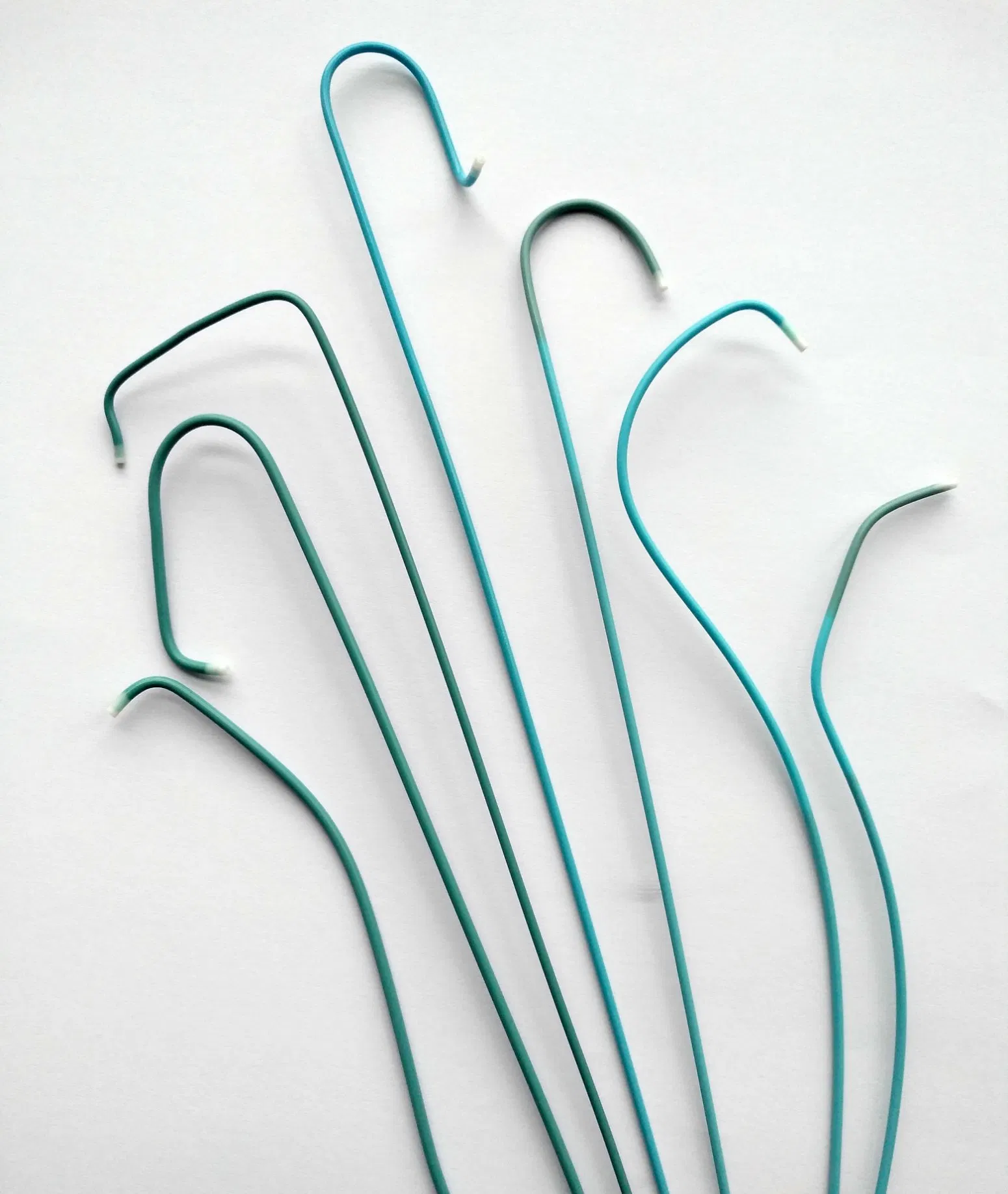

Size comparison table of specifications and models
For Peripheral and Neurovascular Applications

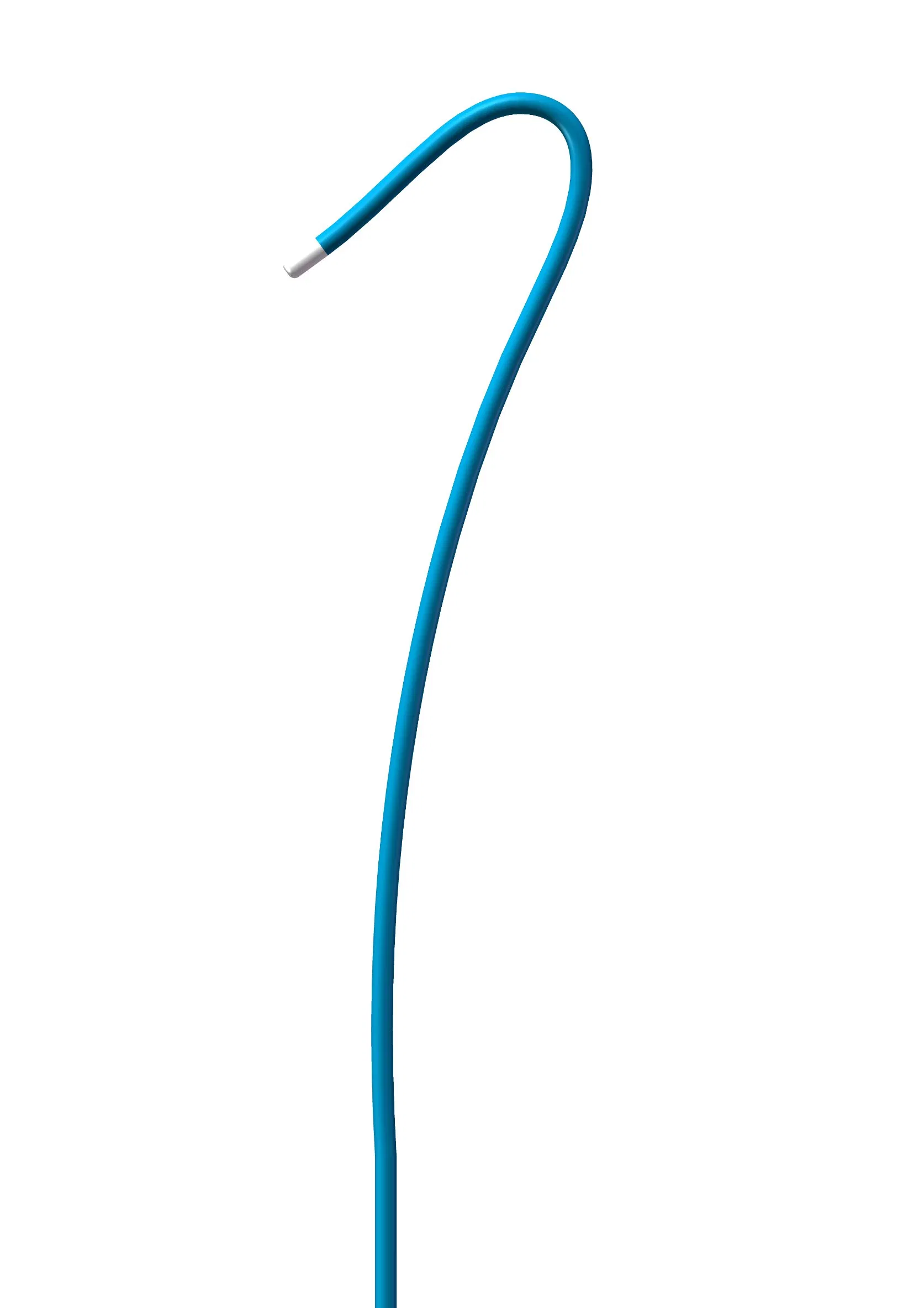

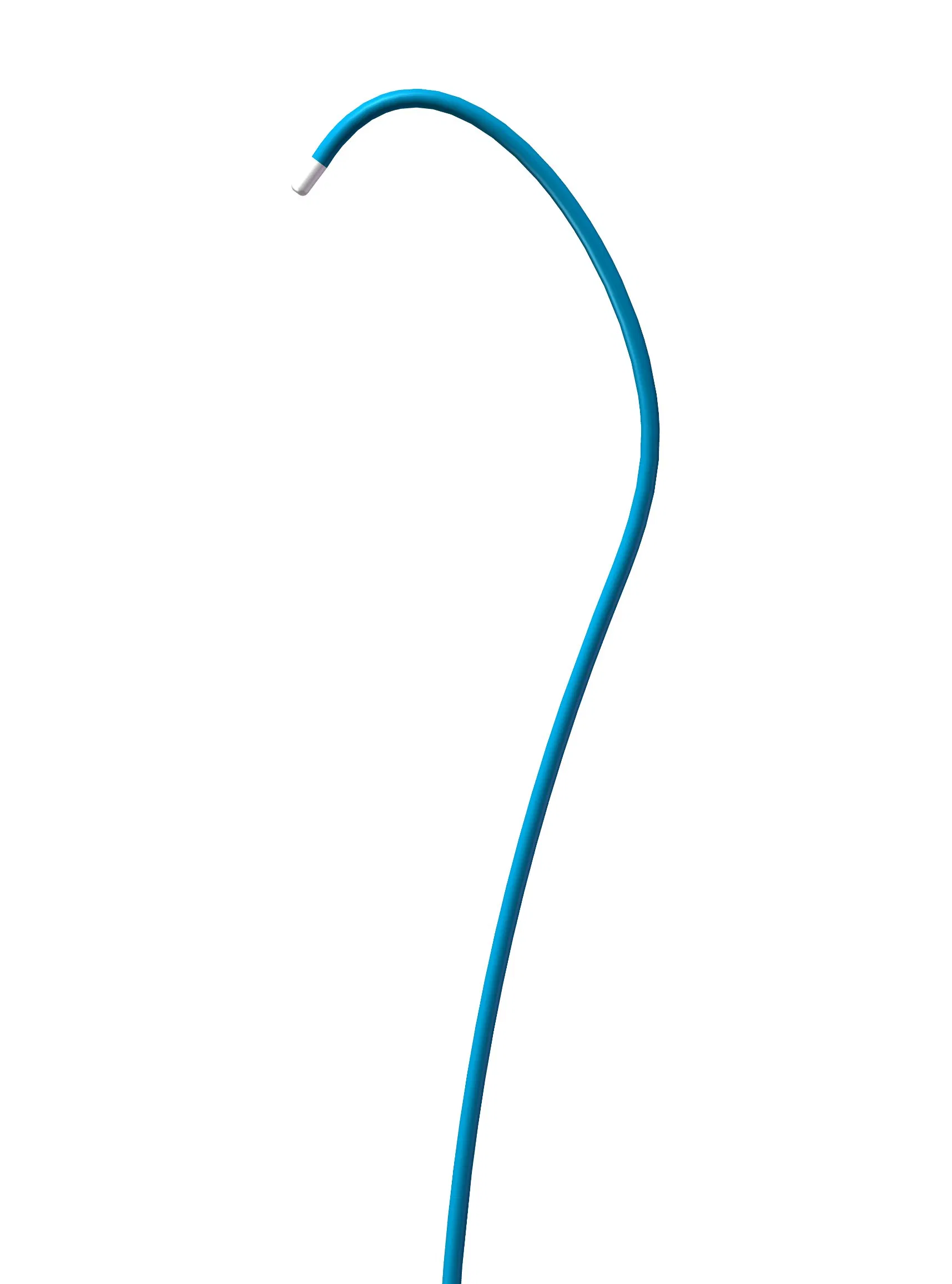

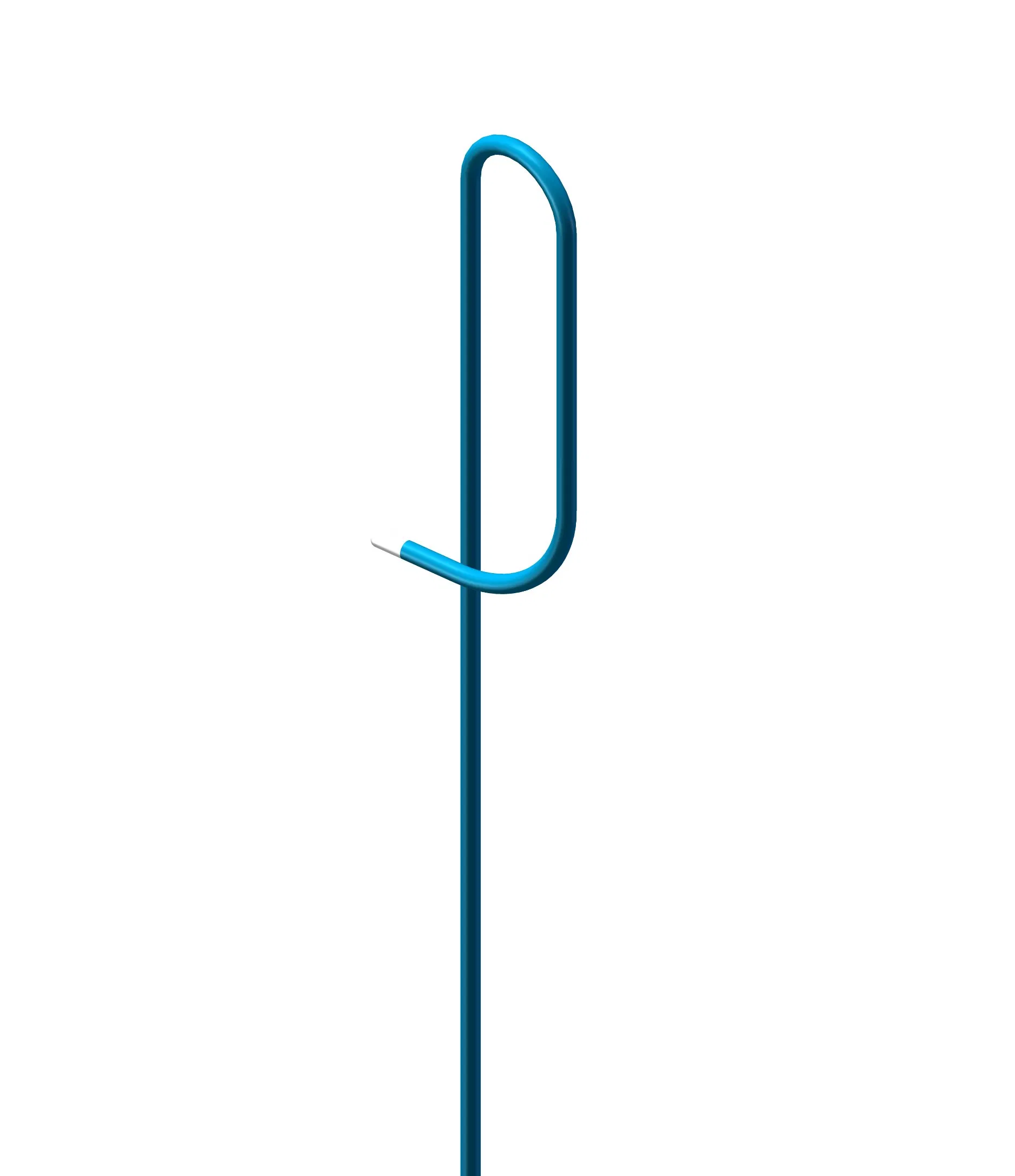

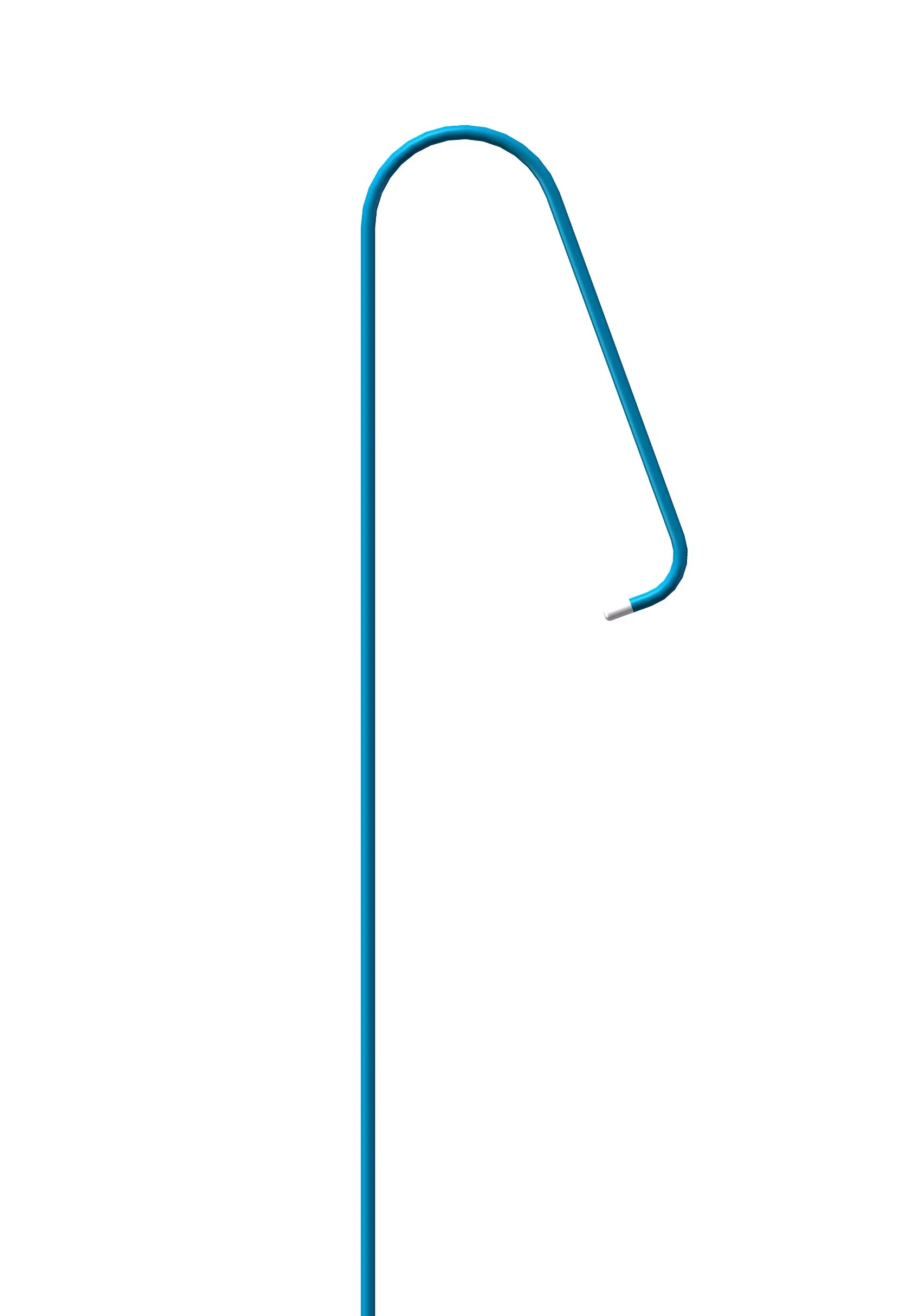

| Terminal Configuration |
Models |
Nominal OD (Fr/mm) |
Effective Length (cm) |
| Hepatic artery (RH) | RH630-4.2 / RH630-5 | 4.2/1.4 - 5/1.7 | 80/100/125 |
| Simmons (SM) | SM510/511/512 | 4.2/1.4 - 5/1.7 | 80/100/125 |
| Hunter head (HH) | HH371/372/373/374/375 | 4.2/1.4 - 5/1.7 | 80/100/125 |
| Renal artery (HS) | HS640 / HS641 | 4.2/1.4 - 5/1.7 | 80/125 |
| Cobra (CB) | CB230 / CB231 / CB232 | 4.2/1.4 - 5/1.7 | 80/125 |
| Single bend (RC) | RC620 / RC621 / RC622 | 4.2/1.4 - 5/1.7 | 80/100 |
| Multifunctional (MPA) | MPA35 / MPA280 / MPA281 | 4.2/1.4 - 5/1.7 | 100/110/125 |
| Vertebral artery (AN) | AN-4.2 / AN-5 | 4.2/1.4 - 5/1.7 | 100/125 |
| Shepherd (SH) | SH210 / SH211 / SH212 | 4.2/1.4 - 5/1.7 | 80/100/125 |
For Coronary Applications
| Terminal Configuration |
Models |
Nominal OD (Fr) |
Effective Length (cm) |
| Judkins Left (JLA) | JL35 / JL40 / JL45 / JL50 | 5 / 6 | 100 |
| Amplatz Left (ALA) | AL1 / AL2 / AL3 | 5 / 6 | 100 |
| Judkins Right (JRA) | JR35 / JR40 / JR45 / JR50 | 5 / 6 | 100 |
| Amplatz Right (ARA) | AR1 / AR2 / AR3 | 5 / 6 | 100 |
| Tiger (TIG) | TIG35 / TIG40 / TIG45 | 5 / 6 | 100 |
| Pigtail (PIG) | PG1 / PG2 / PG3 | 5 / 6 | 100 |
Technical Features
Catheter Tip:
Super radiopaque tungsten tip ensures clear visualization of the tip under fluoroscopy. Soft, atraumatic tip design minimizes vascular trauma and damage during procedures.
Shaft:
Co-extruded Nylon Shaft: Ensures reliable pushability & torquability. Optional Braided Shaft: Enhances 1:1 torquability.
Frequently Asked Questions
What is the main use of the MicroApproach Angiographic Catheter?
It is primarily used for delivering radiopaque contrast medium to specific sites in the vascular system for diagnostic purposes in peripheral, neurovascular, and coronary procedures.
What sizes are available for this catheter?
The catheters are available in 4F, 5F, and 6F outer diameters, with lengths ranging from 45cm up to 125cm depending on the clinical application.
How is the catheter sterilized and how long can it be stored?
The product is sterilized using Ethylene Oxide (EO) and has a quality guarantee shelf life of 2 years.
What unique features does the catheter tip have?
It features a super radiopaque tungsten tip for excellent visibility under fluoroscopy and an atraumatic design to ensure patient safety and minimize vessel damage.
Is the catheter coating compatible with all procedures?
Yes, it features a hydrophilic coating that reduces friction, making it suitable for complex interventional procedures in various vascular sites.
What certifications does the product hold?
The MicroApproach Angiographic Catheter is fully certified with CE, NMPA, and ISO13485 standards.
