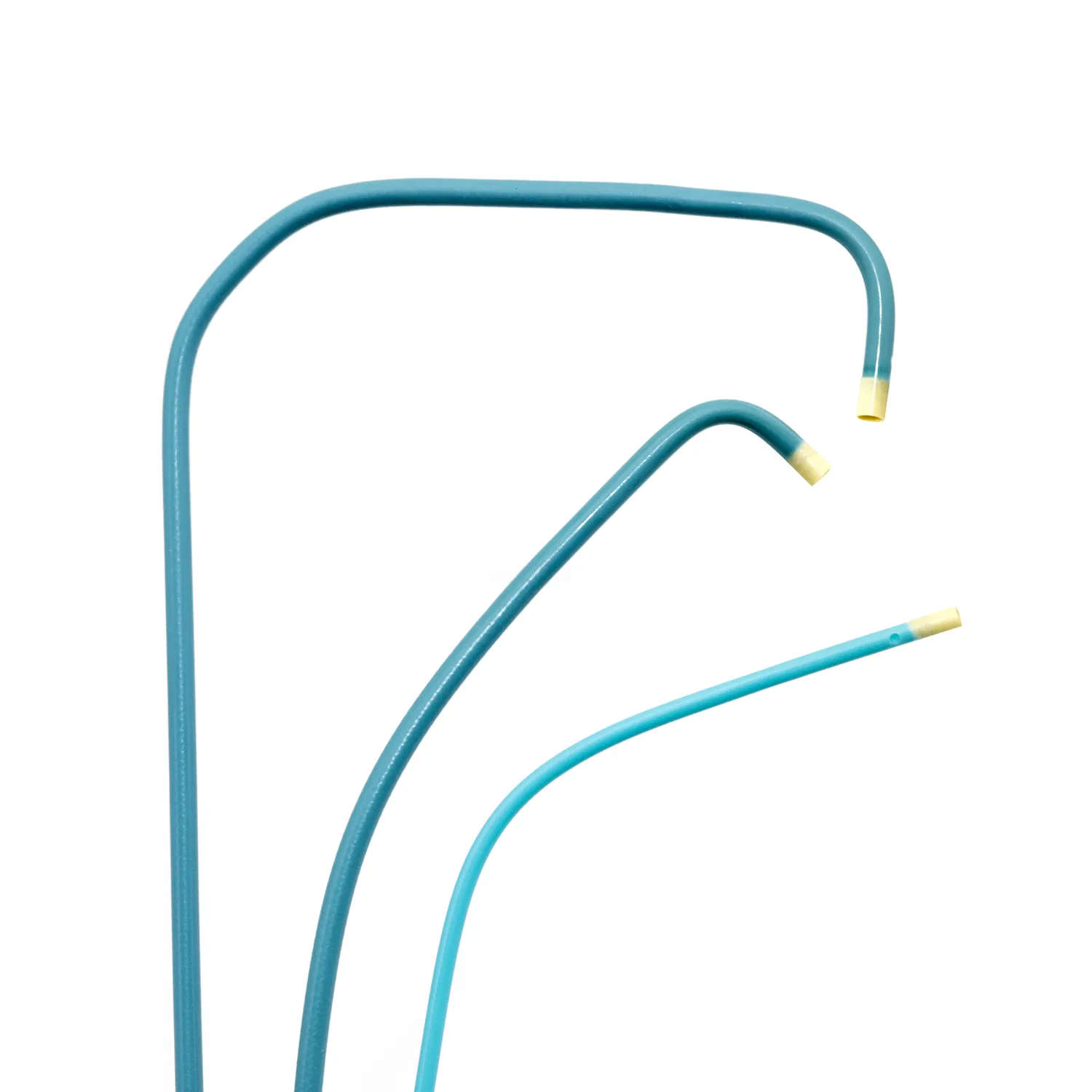

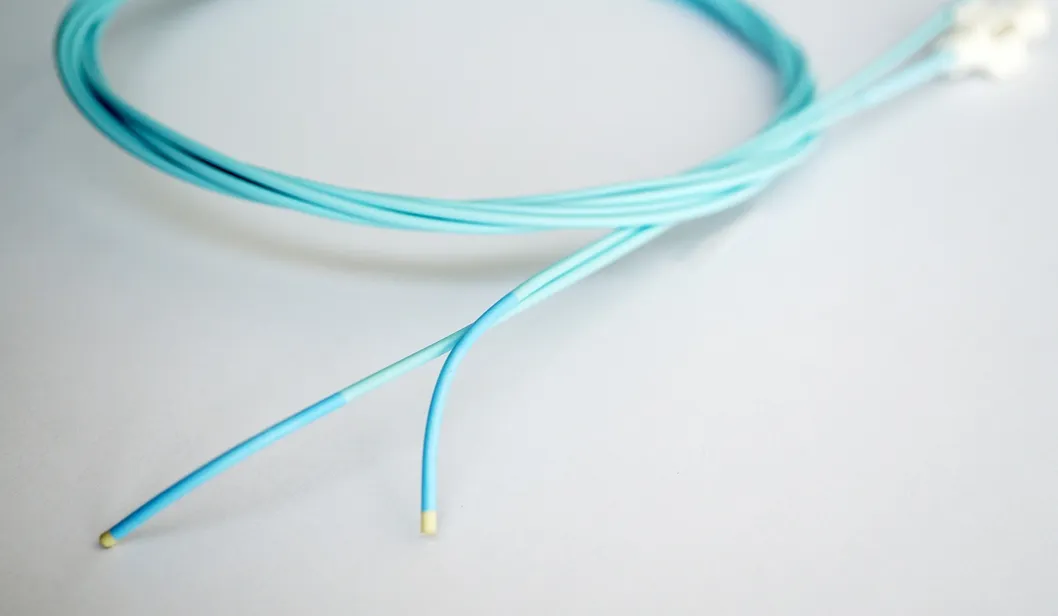

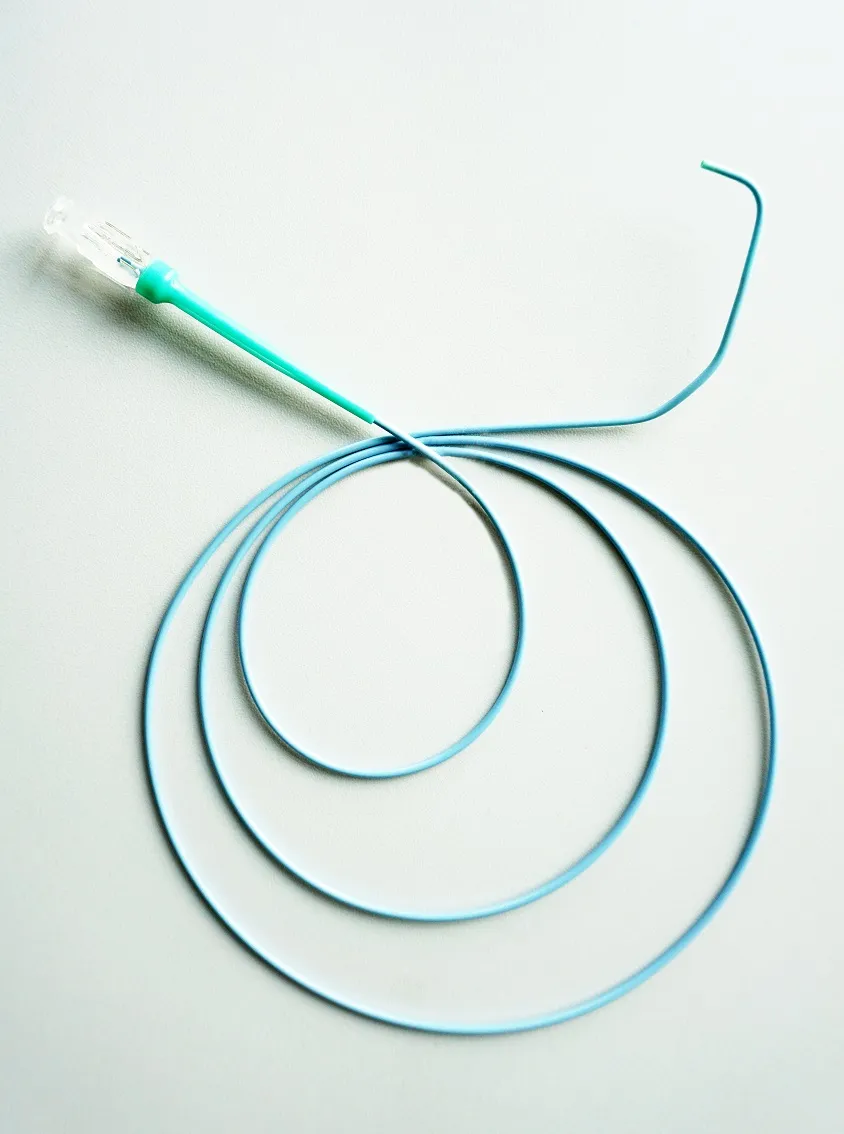

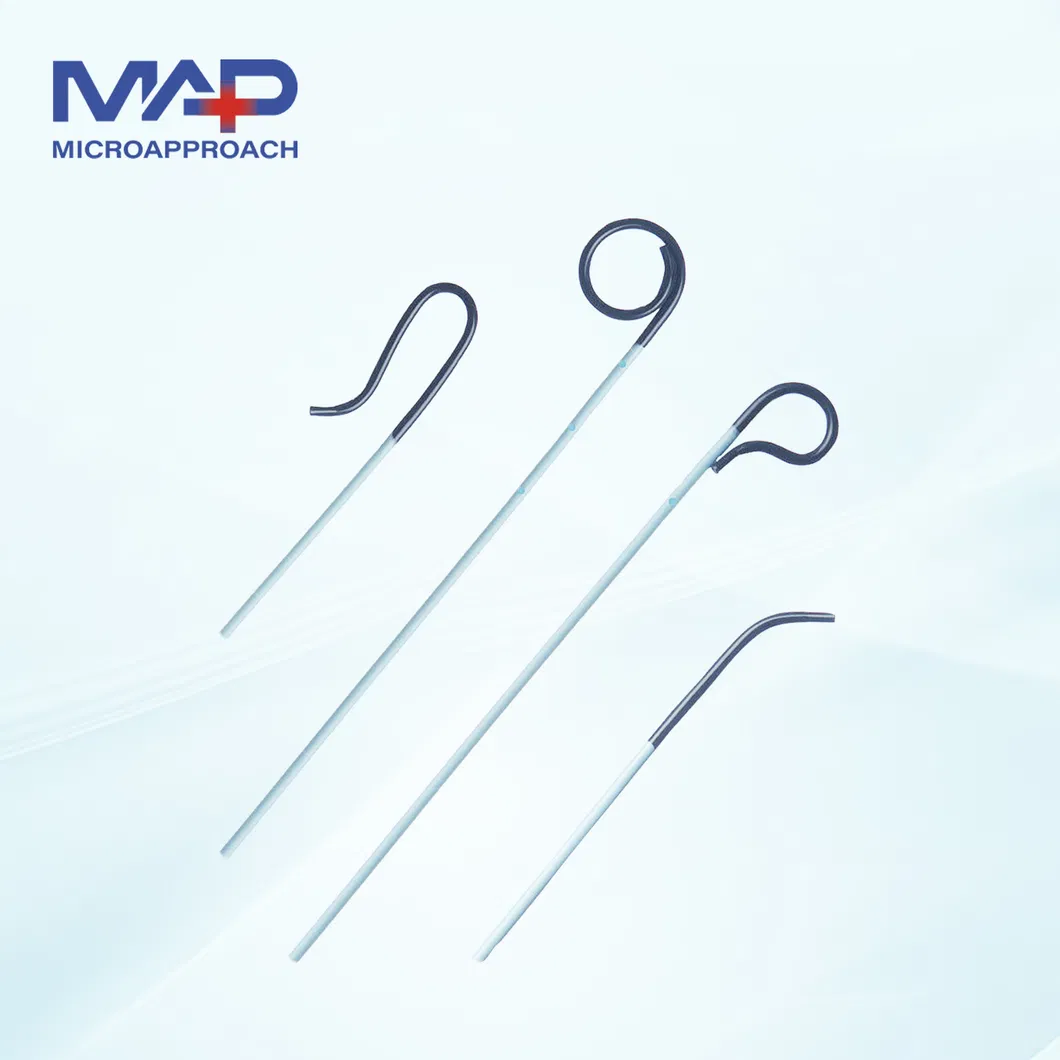

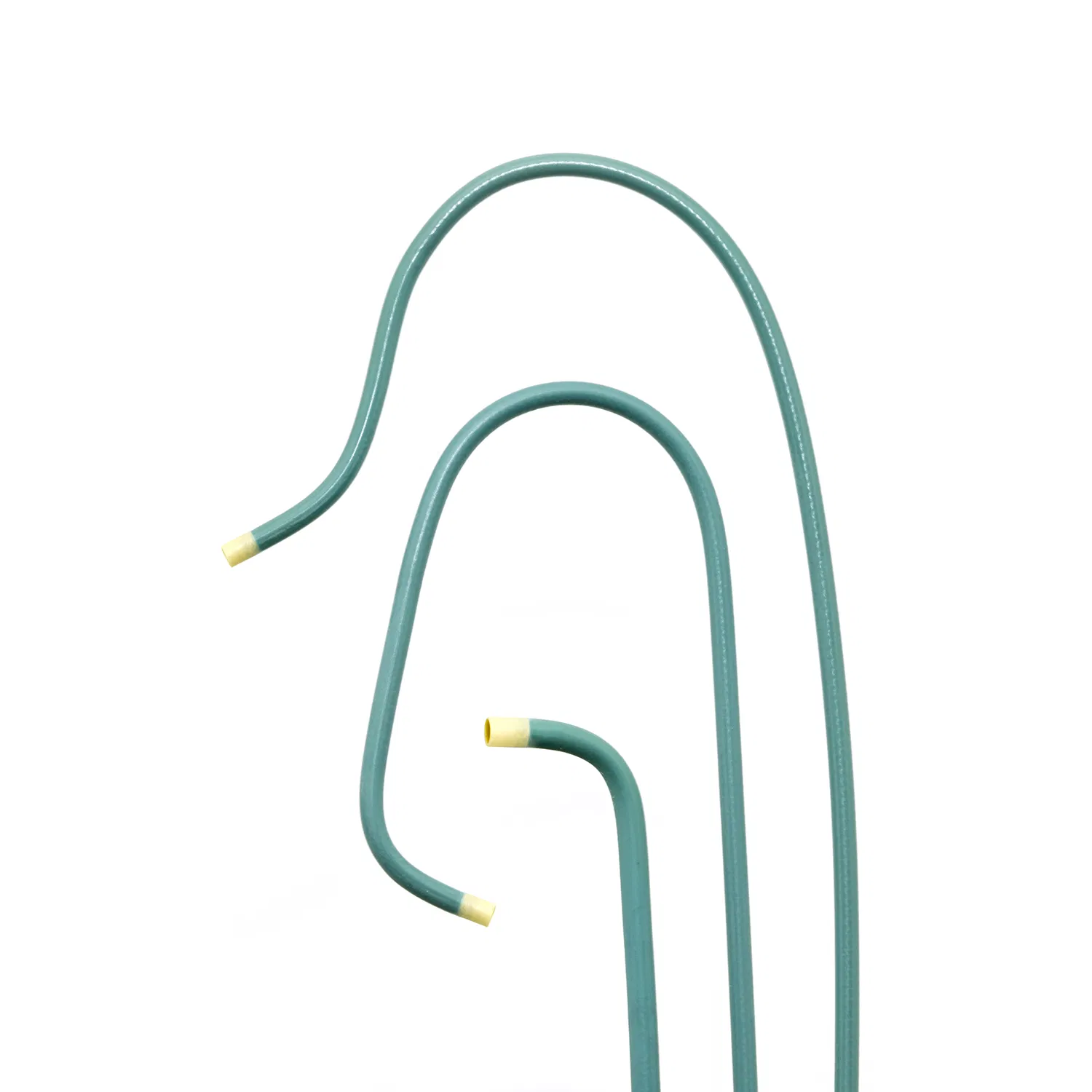

The Angiographic Catheter is a specialized medical device mainly composed of a tube body (flexible catheter and hard catheter) and two-way stopcocks. It is specifically designed for use in angiographic procedures, delivering radiopaque media and therapeutic agents to selected sites within the vascular system for diagnostic and treatment purposes.

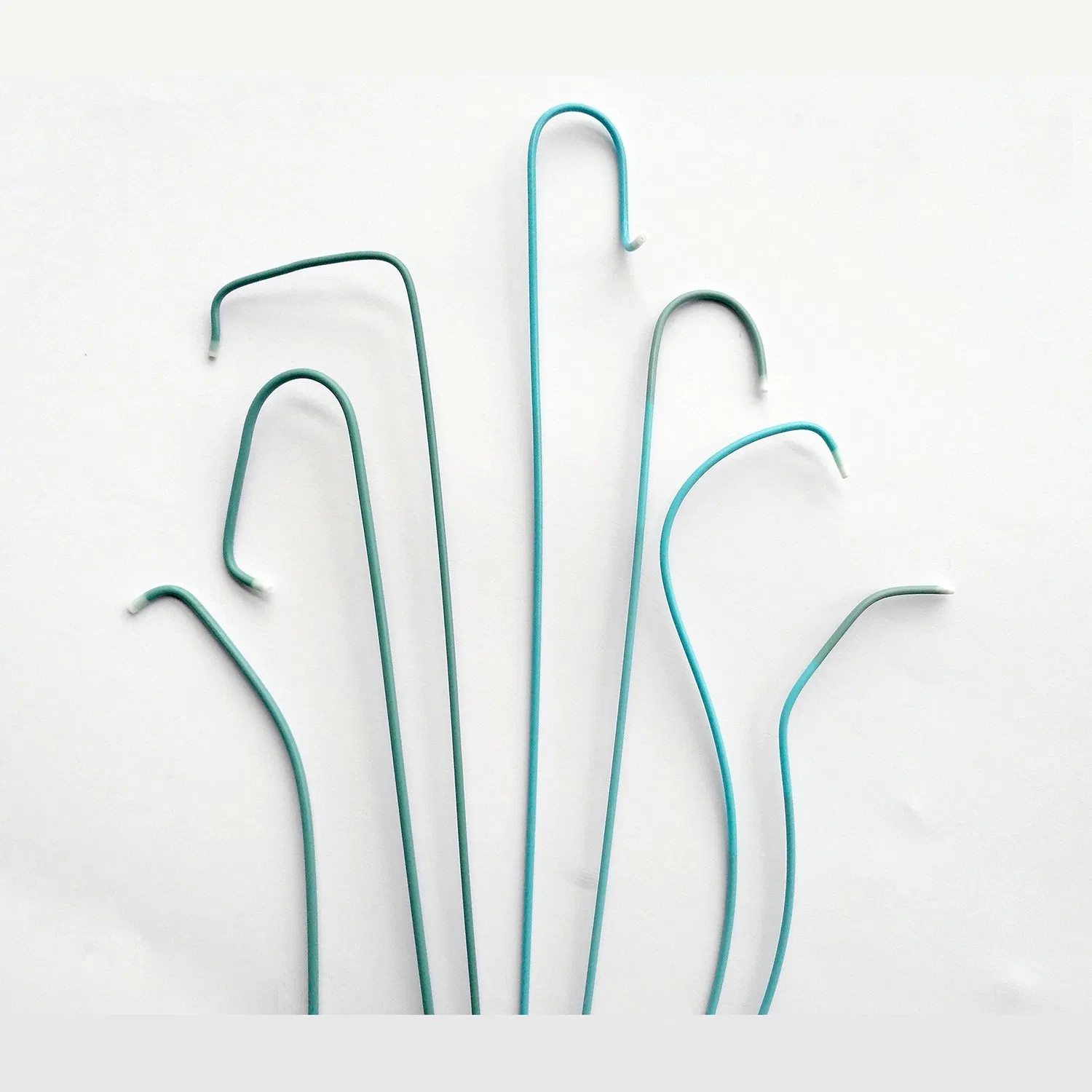

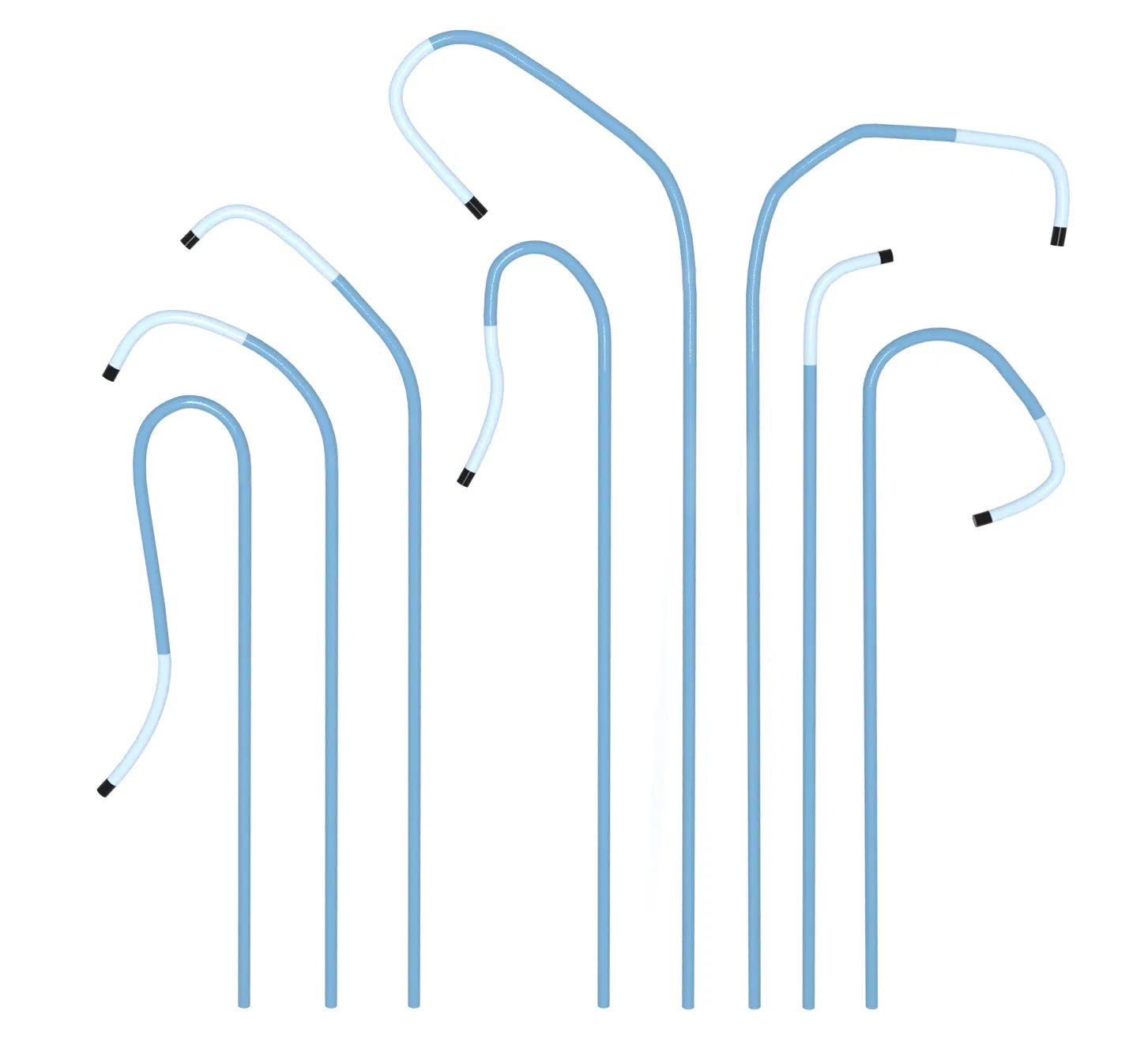

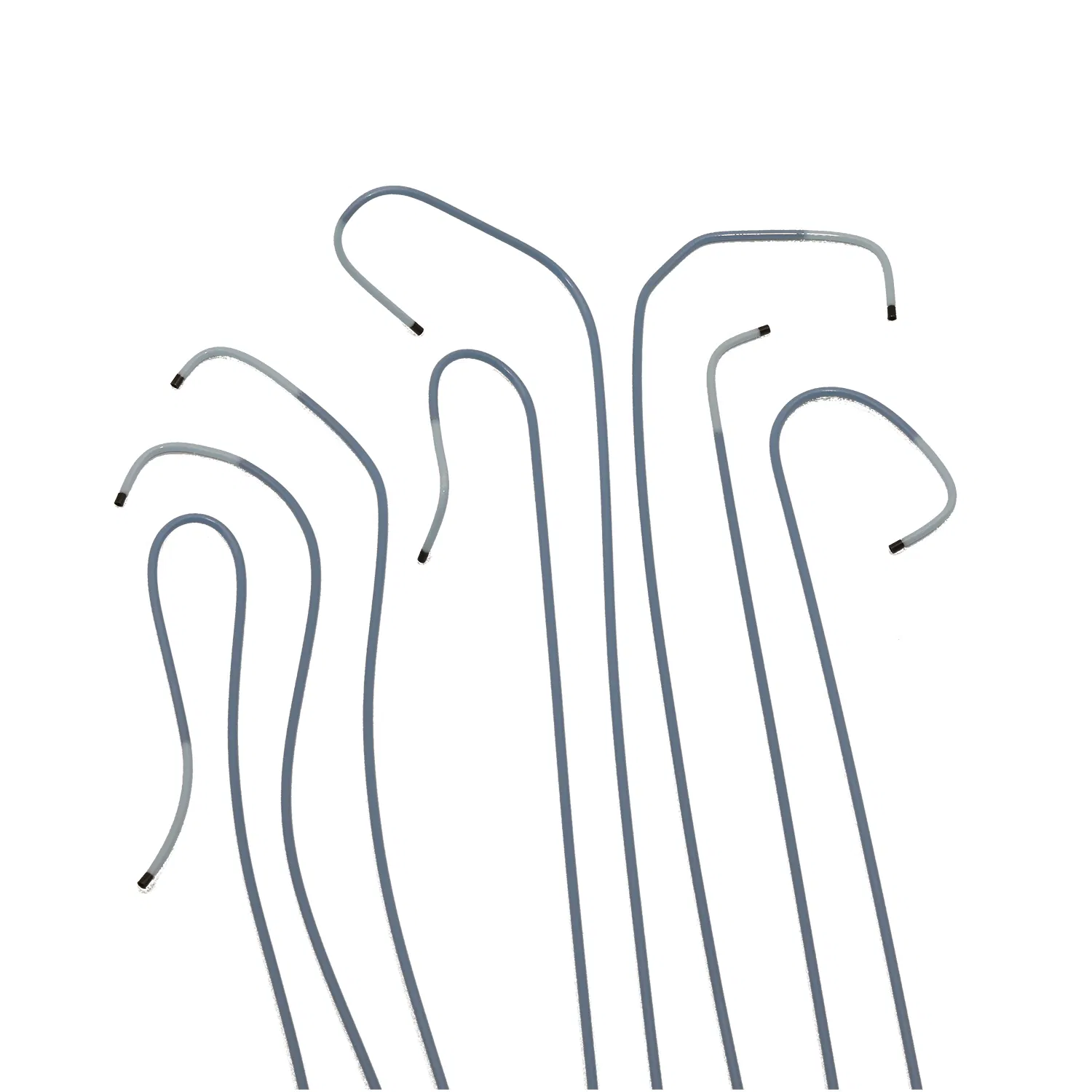

| Terminal Configuration | Size Models | Nominal OD (Fr/mm) | Internal Diameter (mm) | Effective Length (cm) |
|---|---|---|---|---|
| Hepatic Artery (RH) | RH630-4.2-80 / RH630-5-80 | 4.2/1.4 - 5/1.7 | 1.0 - 1.03 | 80 |

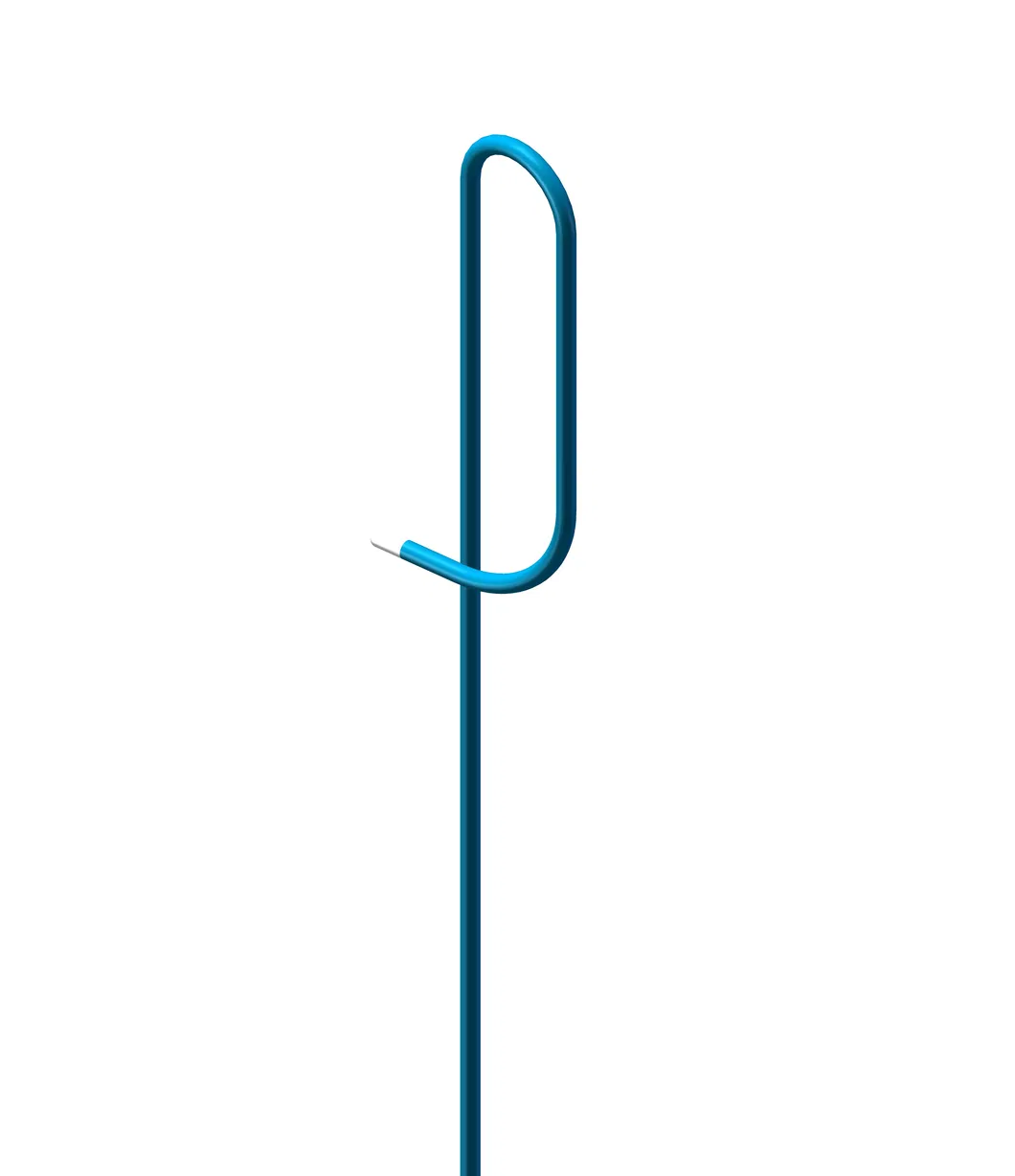

| Simmons Tube (SM) | SM510/511/512 | 4.2/1.4 - 5/1.7 | 1.0 - 1.03 | 100 |
| Hunter Head (HH) | HH371-4.2-100 / HH371-5-100 | 4.2/1.4 - 5/1.7 | 1.0 - 1.03 | 100 |
| Renal Artery (HS) | HS640/641 Series | 4.2/1.4 - 5/1.7 | 1.0 - 1.03 | 80 |
| Cobra Tube (CB) | CB230/231/232 Series | 4.2/1.4 - 5/1.7 | 1.0 - 1.03 | 80 |
| Single Bend (RC) | RC620/621/622 Series | 4.2/1.4 - 5/1.7 | 1.0 - 1.03 | 80 |
| Multifunctional (MPA) | MPA35 / MPA280 / MPA281 | 4.2/1.4 - 5/1.7 | 1.0 - 1.03 | 100-110 |
| Vertebral Artery (AN) | AN-4.2-100 / AN-5-100 | 4.2/1.4 - 5/1.7 | 1.0 - 1.03 | 100 |
| Shepherd Tube (SH) | SH210/211/212 Series | 4.2/1.4 - 5/1.7 | 1.0 - 1.03 | 80 |
