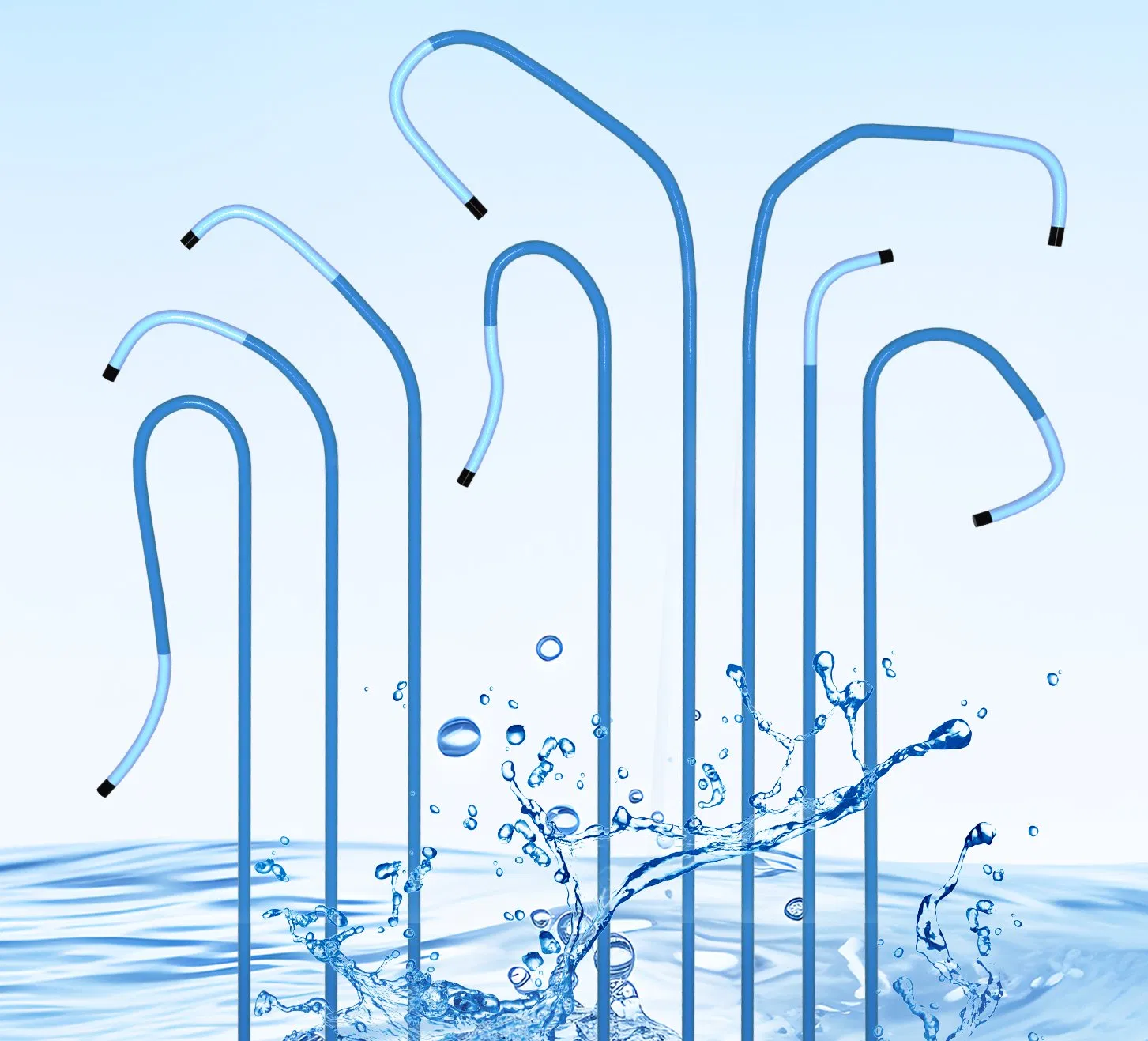

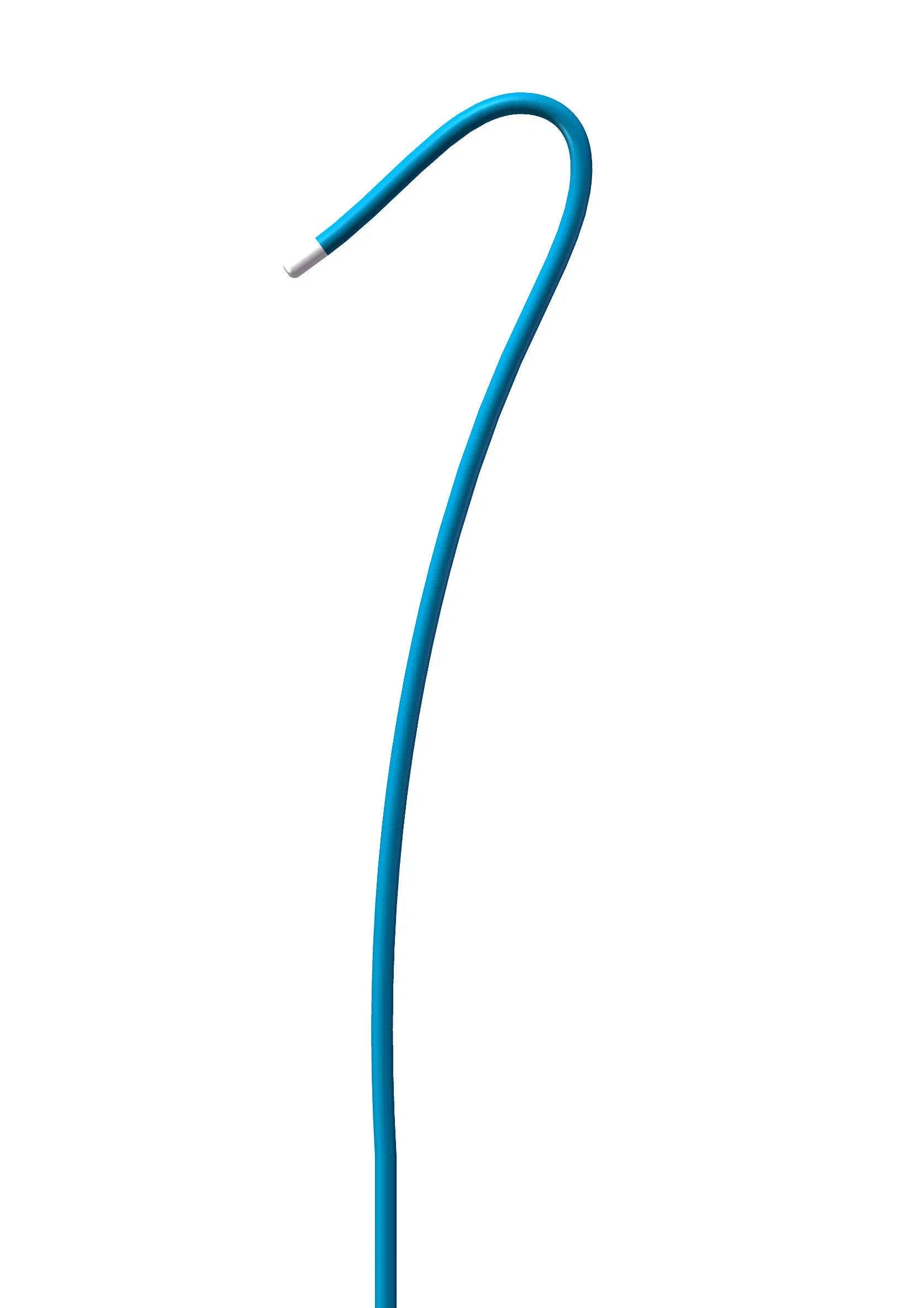

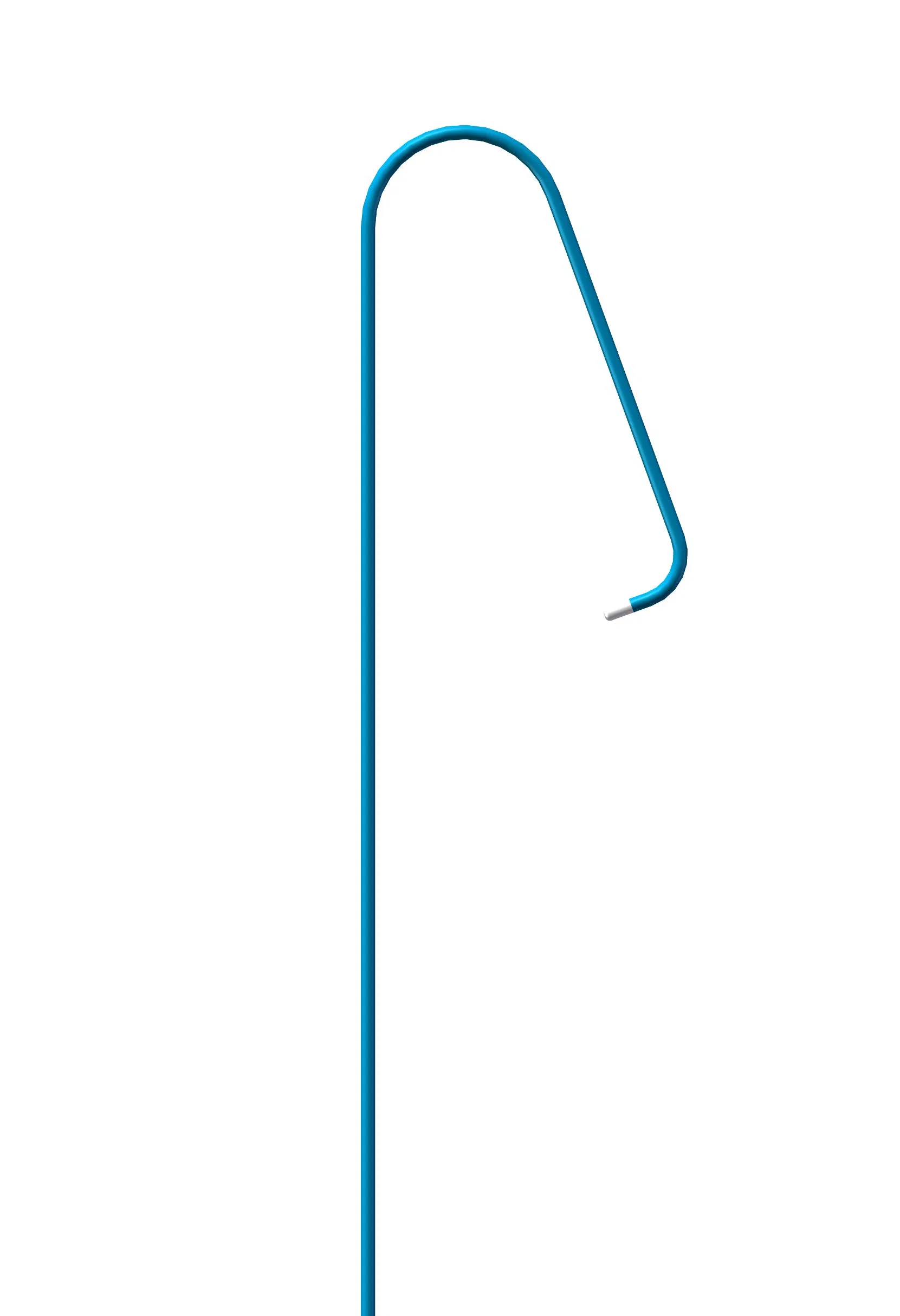

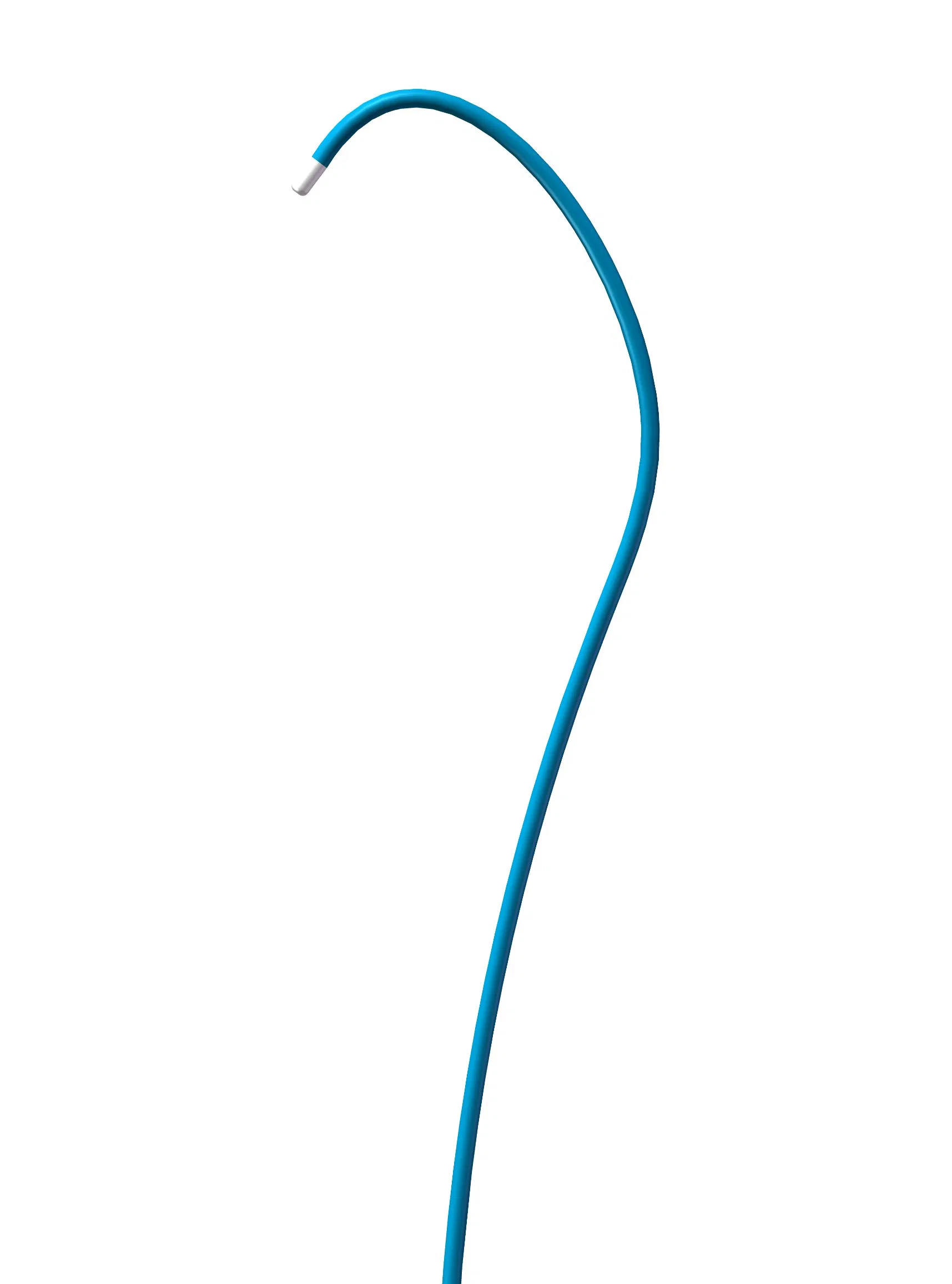

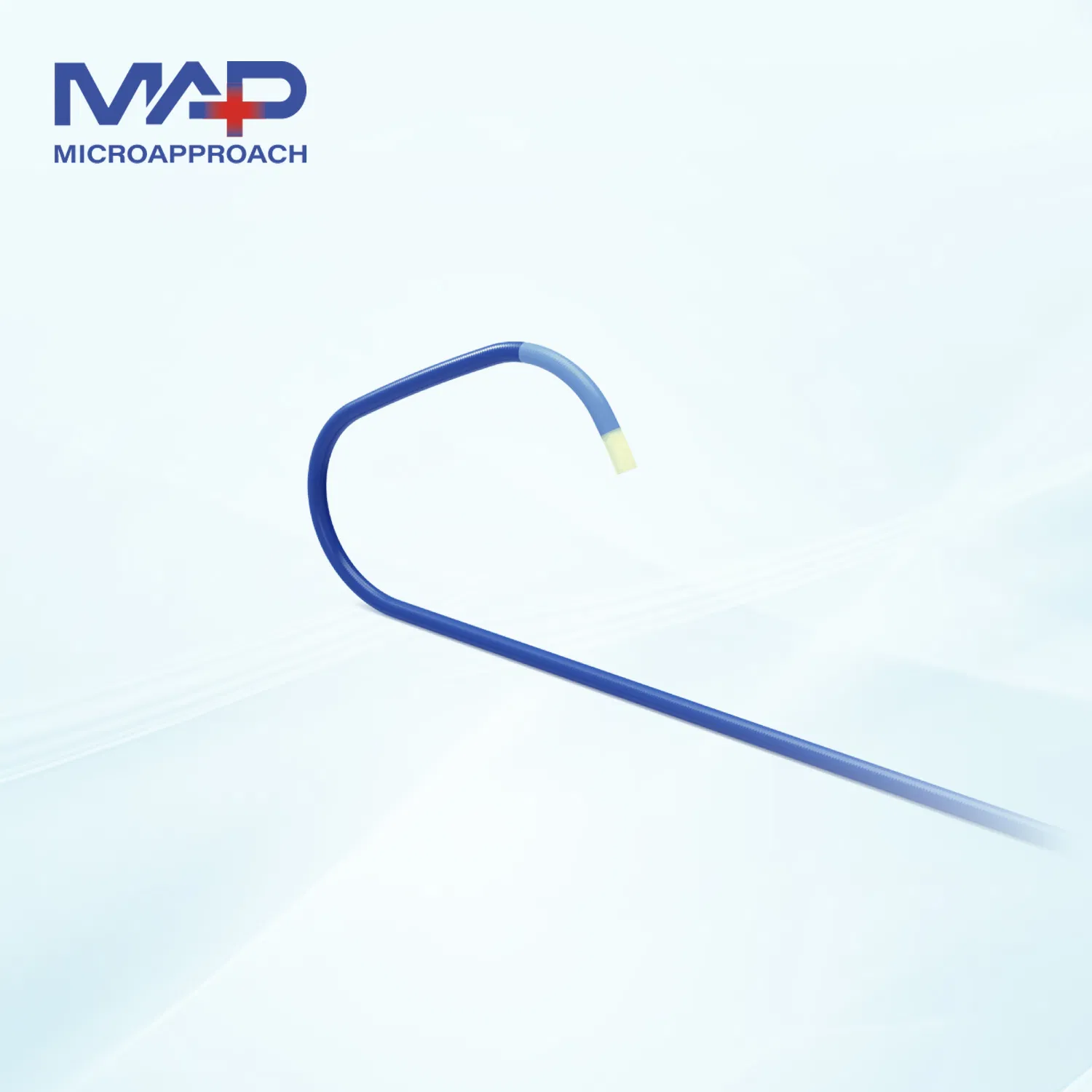

The Angiographic Catheter is engineered to deliver radiopaque contrast medium to targeted sites within the vascular system for precise diagnostic purposes. Utilizing advanced braiding technology paired with an atraumatic tip, the device ensures superior pushability and 1:1 torque control while significantly reducing the risk of vessel trauma.
Super radiopaque tungsten tip ensures clear visualization under fluoroscopy. The soft, atraumatic design protects delicate vascular walls.
Co-extruded Nylon shaft provides reliable pushability. Optional braided shaft designs are available to enhance torque transmission.
| Configuration | Models | Outer Diameter (Fr/mm) | Effective Length (cm) |
|---|---|---|---|
| Hepatic Artery (RH) | RH630 series | 4.2/1.4 - 5/1.7 | 80/100/125 |
| Simmons (SM) | SM510 - SM512 | 4.2/1.4 - 5/1.7 | 80/100/125 |
| Hunter Head (HH) | HH371 - HH375 | 4.2/1.4 - 5/1.7 | 80/100/125 |
| Renal Artery (HS) | HS640 - HS641 | 4.2/1.4 - 5/1.7 | 80/125 |
| Cobra (CB) | CB230 - CB232 | 4.2/1.4 - 5/1.7 | 80/125 |
| Multifunctional (MPA) | MPA series | 4.2/1.4 - 5/1.7 | 100/125 |
| Configuration | Models | Size (Fr) | Length (cm) |
|---|---|---|---|
| Judkins Left (JLA) | JL35 - JL50 | 5 / 6 | 100 |
| Amplatz Left (ALA) | AL1 - AL3 | 5 / 6 | 100 |
| Judkins Right (JRA) | JR35 - JR50 | 5 / 6 | 100 |
| Tiger (TIG) | TIG35 - TIG45 | 5 / 6 | 100 |
| Pigtail (PIG) | PG1 - PG3 | 5 / 6 | 100 |
